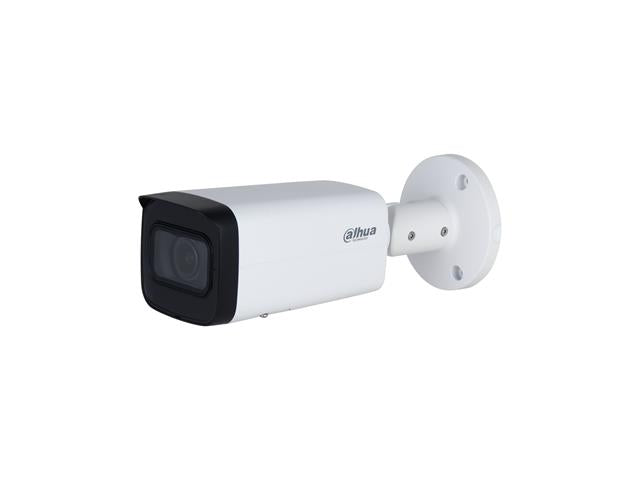

DHA IPC-HFW2441T-ZS 2.7-13.5MM

SKU: DHA IPC-HFW2441T-ZS 2.7-13.5MM

BRAND: Dahua


Dahua Wiz Sense 4MP Bullet IP Camera , 2.7~13.5mm Lens , 60m IR , 4MP, 1/29” CMOS image sensor, (2688 × 1528)@25/30fps, WDR:120dB , 3D NR , Built-in MIC , Motorized Vari-Focal , IP67, ROI, SMART H.264+/H.265+ , 12V DC, 238.5×90.7x90.7mm , 0.76kg

Wiz Sense 4MP Bullet IP Camera

Feature(s)

  • 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 (2560 × 1440)@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, and the max. illumination distance is 60 m.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network
     disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67, IK10 (optional) protection.
  • SMD Plus.

Specifications

Camera

  • Image Sensor : 1/2.9" CMOS
  • Max. Resolution : 2688 (H) × 1520 (V)
  • ROM : 128 MB
  • RAM : 128 MB
  • Scanning System : Progressive
  • Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
  • Min. Illumination
    • 0.006 lux@F1.5 (Color, 30 IRE)
    • 0.0006 lux@F1.5 (B/W, 30 IRE)
    • 0 lux (Illuminator on)
  • S/N Ratio : >56 dB
  • Illumination Distance : Up to 60 m (196.85 ft) (IR LED)
  • Illuminator On/Off Control : Auto; Manual
  • Illuminator Number : 4 (IR LED)
  • Pan/Tilt/Rotation Range
    • Pan: 0°–360°
    • Tilt: 0°–90°
    • Rotation: 0°–360°

Lens

  • Lens Type : Motorized vari-focal
  • Lens Mount : φ14
  • Focal Length : 2.7 mm–13.5 mm
  • Max. Aperture : F1.5
  • Field of View
    • H: 104°–29°;
    • V: 54°–16°;
    • D: 125°–34°
  • Iris Control : Fixed
  • Close Focus Distance : 0.8 m (2.62 ft)

Intelligence

  • IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

  • Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
  • Smart Codec : Smart H.265+; Smart H.264+
  • Video Frame Rate
    • Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@ (1-25/30 fps)
    • Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
    • *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
  • Stream Capability : 2 streams
  • Resolution : 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
  • Bit Rate Control : CBR/VBR
  • Video Bit Rate
    • H.264: 32 kbps–6144 kbps;
    • H.265: 12 kbps–6144 kbps
  • Day/Night : Auto(ICR)/Color/B/W
  • BLC : Yes
  • HLC : Yes
  • WDR : 120 dB
  • White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
  • Gain Control : Manual;Auto
  • Noise Reduction : 3D NR
  • Motion Detection : OFF/ON (4 areas, rectangular)
  • Region of Interest (RoI) : Yes (4 areas)
  • Smart Illumination : Yes
  • Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
  • Mirror : Yes
  • Privacy Masking : 4 areas

Audio

  • Built-in MIC : Yes
  • Audio Compression : G.711a; G.711Mu; G.726; PCM

Alarm

  • Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion
    detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only - ZAS supports); SMD; security exception

Network

  • Network Port : RJ-45 (10/100 Base-T)
  • SDK and API : Yes
  • Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
  • Interoperability : ONVIF (Profile S/Profile T); CGI
  • User/Host : 6 (Total bandwidth: 36 M)
  • Storage : FTP; SFTP; Micro SD card (support max. 256 GB)
  • Browser
    • IE
    • Chrome
    • Firefox
  • Management Software : SmartPSS Lite; DSS; DMSS
  • Mobile Client : iOS; Android
  • Cyber Security : Video encryption; Configuration encryption; Digest;WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Certification

  • Certifications
    • CE-LVD: EN62368-1;
    • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
    • FCC: 47 CFR FCC Part 15, Subpart B;
    • UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

  • Alarm Input : 1 channel in: 5mA 3V–5V DC (Only - ZAS supports)
  • Alarm Output : 1 channel out: 300mA 12V DC (Only - ZAS supports)

Power

  • Power Supply : 12 VDC/PoE (802.3af)
  • Power Consumption
    • -ZS:
      • Basic: 2.4 W (12 VDC); 3.1 W (PoE)
      • Max. (H.265+intelligence on +WDR +IR on): 8.7 W (12
      • VDC); 10.1 W (PoE)

Environment

  • Operating Temperature : –30 °C to +60 °C (–22 °F to +140 °F)
  • Operating Humidity : ≤95%
  • Storage Temperature : –40 °C to +60 °C (–40°F to +140°F)
  • Protection : IP67, IK10 (optional)

Structure

  • Casing Material : Metal
  • Product Dimensions : 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)
  • Net Weight -ZS : 0.73 kg (1.6 lb)
  • Gross Weight : -ZS: 0.99 kg (2.2 lb)

Downloads

Additional Information

Device Camera
Type Wiz Sense | 4MP | Bullet | IP
