Dahua WizMind Fixed-Focal Bullet Network Camera 4MP 6mm Lens , 80m IR , Smart Dual Light , 1/1.8" CMOS , H.264+/H.265+ , AI H.264/H.265 , WDR 140dB , BLC/HLC 3DNR , Built-in Mic , 1xRJ45 10/100mbs , ONVIF , 12VDC/PoE (802.3at)/ePoE , IP67 IK10 , BLACK

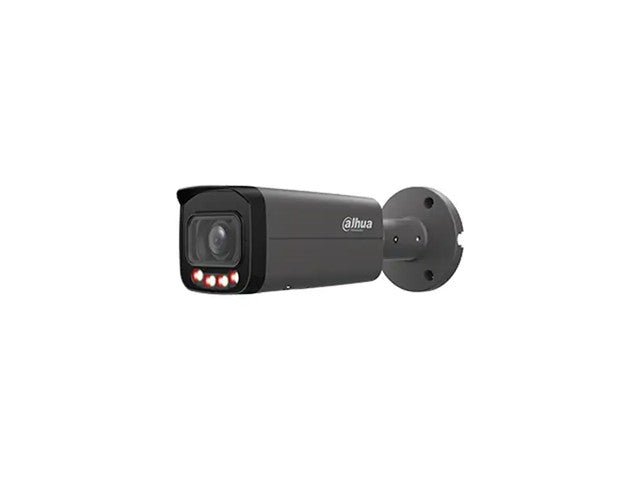

Dahua WizMind Fixed-Focal Bullet Network Camera
Specifications
- Product Type: AI Smart Dual Light IP Bullet Camera
- Model Number: IPC-HFW5459T-ASE-IL-BLK
- Lens: 6 mm fixed-focal lens
- Image Sensor: 1/1.8-inch CMOS
- Maximum Resolution: 4 MP (2688 × 1520)
- Maximum Frame Rate: 25/30 fps at 4 MP
- Minimum Illumination (Colour): 0.0007 lux at F1.6
- Minimum Illumination (Black & White): 0.0004 lux at F1.6
- Day/Night Mode: Auto (ICR), Colour, Black & White
- Lens Aperture: F1.6
- Horizontal Field of View: 60°
- Vertical Field of View: 35°
- Diagonal Field of View: 68°
- Wide Dynamic Range (WDR): 140 dB
- Image Enhancement: 3D Noise Reduction, BLC, HLC and digital image stabilisation
- Video Compression: H.265, H.264, H.264H, H.264B and MJPEG
- Smart Compression: Smart H.265+, Smart H.264+, AI H.265 and AI H.264
- Intelligent Analytics: AcuPick, face detection, video metadata, people counting and perimeter protection
- Perimeter Protection: Tripwire, intrusion, fast-moving object detection, loitering, people gathering and parking detection
- Smart Motion Detection: SMD with human and vehicle classification
- Infrared Illumination Range: Up to 80 m
- Warm Light Illumination Range: Up to 60 m
- Lighting Technology: Smart Dual Light with infrared and warm-light illumination
- Built-in Microphone: Yes
- Audio Input: 1 channel
- Audio Output: 1 channel
- Alarm Input: 1 channel
- Alarm Output: 1 channel
- Network Interface: 1 × RJ45 10/100 Mbps Ethernet
- Network Protocols: IPv4, IPv6, TCP, UDP, RTSP, DHCP, DNS, NTP, SNMP and ONVIF
- ONVIF Compatibility: Profiles S, G, T and M
- Local Storage: MicroSD card slot, supports up to 1 TB
- Power Supply: 12 V DC or PoE+ (IEEE 802.3at); ePoE supported
- Power Consumption: 4.1 W basic (12 V DC); maximum 13.2 W (12 V DC) or 15.5 W (PoE)
- Ingress Protection: IP67
- Impact Resistance: IK10
- Housing Material: Metal
- Operating Temperature: −40°C to +60°C
- Operating Humidity: Up to 95% RH, non-condensing
- Dimensions (L × W × H): 238 × 90.7 × 90.7 mm
- Net Weight: Approximately 835 g

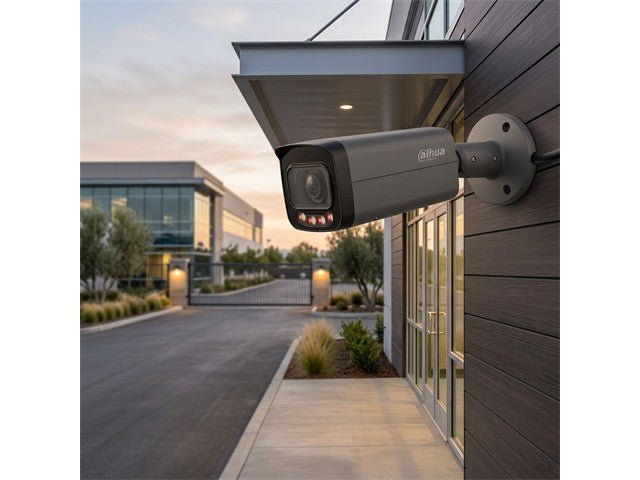

- Applications: Perimeter security, commercial buildings, warehouses, industrial facilities and outdoor surveillance.
