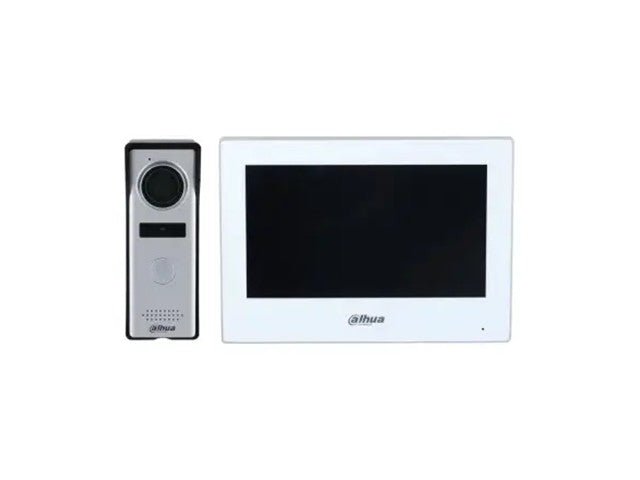

Dahua Video Intercom Kit - Includes: VTH2624GW-WP 7" TFT Touch Screen, Built-in Speaker, WiFi, ONVIF, 1024×600, RS485, 6xAlarm I/P , 1xAlarm O/P, 1×RJ45 10/100Mbs, 12VDC 1A , 4 Wire , VTO1000J:1.3MP, DWDR, Auto IR, Powered By Indoor Monitor
Video Intercom Kit
Features
VTH
- 7" TFT capacitive touch screen, 1024 × 600.
- Wi-Fi.
- 264 video decoding. Connects to analog and digital VTOs, and analog and digital VTHs.
- Connects to IPCs.
- Features group call. Supports recording videos and capturing snapshots (SD card is required).
- 6-channel alarm input and 1-channel alarm output.
- Supports app management, receiving calls and alarm messages, and monitoring and opening the door
- Standard PoE.
- Surface mount.
VTO
- Unlock, voice call, video call and volume adjustment.
- Multiple bell sounds.
- Supports digital wide dynamic range (DWDR).
- Mechanical button.
Specifications
|
System
|
|
Main Processor
|
Embedded Processor
|
|
Operating System
|
Embedded operating system
|
|
Network Protocol
|
UDP; TCP; FTP; IPv4; DNS; RTSP; SSH; SIP; P2P; RTP
|
|
Interoperability
|
ONVIF
|
|
Basic
|
|
Screen Type
|
Capacitive Touchscreen
|
|
Display Screen
|
7" TFT
|
|
Screen Resolution
|
1024 (H) × 600 (V)
|
|
Audio Compression
|
G.711a; G.711u; PCM
|
|
Audio Input
|
1 channel
|
|
Audio Output
|
Built-in speaker
|
|
Audio Mode
|
Two-way audio with VTO (half–duplex); Two-way audio with app (full–duplex)
|
|
Audio Enhancement
|
Echo suppression/digital noise reduction
|
|
Audio Bit Rate
|
16 KHz; 16 Bit
|
|
Function
|
|
Communication Mode
|
Full digital; Analog
|
|
Information Release
|
Receive and view text information released by the management center
|
|
Leave Videos
|
Yes (SD card needed)
|
|
DND Mode
|
Do not disturb period can be set; Do not disturb mode can be set
|
|
Number of Extensions
|
Villa: 9 digital extensions and 2 analog extensions
Apartment: 4 digital extensions and 2 analog extensions
|
|
Wi-Fi
|
Yes
|
|
Wireless Standard
|
IEEE802.11b; 802.11g; 802.11n
|
|
Wireless Frequency Range
|
2.4 GHz
|
|
Storage
|
Micro SD card (up to 64 GB)
|
|
Port
|
|
RS-485
|
1
|
|
Alarm Input
|
6
|
|
Alarm Output
|
1
|
|
Power Output
|
1 (12 V, 200 mA)
|
|
Door Bell
|
Yes (use the alarm input port)
|
|
Network Port
|
1 × RJ-45 10/100 Mbps Ethernet port
|
|
4-wire
|
4
|
|
Performance
|
|
Casing Material
|
PC and ABS
|
|
General
|
|
Appearance Color
|
White
|
|
Power Supply
|
12 VDC, 1 A
Standard PoE
|
|
Power Adapter
|
Optional
|
|
Installation
|
Surface Mount
|
|
Certifications
|
CE
|
|
Accessory
|
Included:
Power cord
485 and Power output ribbon cable
alarm ribbon cable
bracket
|
|
Product Dimensions
|
189.57 mm × 134.57 mm × 26 mm (7.46" × 5.30" × 1.02")
|
|
Operating Temperature
|
–10 °C to +55 °C (+14 °F to +131 °F)
|
|
Operating Humidity
|
10%–90% (RH)
|
|
Operating Altitude
|
0 m–3000 m (0 ft–9842.52 ft)
|
|
Power Consumption
|
≤3.8 W (standby), ≤8.9 W (working)
|
|
Gross Weight
|
604 g (1.33 lb)
|
|
Storage Temperature
|
0 °C to 40 °C (+32 °F to +104 °F)
|
|
Storage Humidity
|
30%–75%
|
|
Anti-corrosion Level
|
Basic Protection
|
|
Operating Environment
|
Indoor
|
|
DHI-VTO1000J
|
|
System
|
|
Button Type
|
Mechanical
|
|
Basic
|
|
Camera
|
1.3MP CMOS
|
|
Field of View
|
Horizontal: 70°
Vertical: 40°
|
|
WDR
|
DWDR
|
|
Illuminator Type
|
Auto IR
|
|
Day/Night
|
ICR auto switch
|
|
Audio Input
|
1 channel to the microphone; pickup distance 0.5 m
|
|
Audio Output
|
1 channel to the speaker
|
|
Status Indicator
|
1 indicator light
Green: Power on
|
|
Function
|
|
Communication Mode
|
Analog
|
|
Unlock Mode
|
Local unlock
|
|
Performance
|
|
Casing
|
PC + ABS
|
|
Port
|
|
Exit Button
|
1
|
|
Door Status Detection
|
1
|
|
General
|
|
Color
|
Silver
|
|
Power Supply
|
Powered by indoor monitor
|
|
Installation
|
Surface mount
|
|
Certifications
|
CE/FCC
|
|
Accessory
|
Rain cover (included)
|
|
Dimensions
|
131.45 mm × 46.00 mm × 33.80 mm
(5.18" × 1.81" × 1.33")
|
|
Protection Grade
|
IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
|
|
Operating Temperature
|
-30°C to +60°C (-22°F to +140°F)
|
|
Operating Humidity
|
10%RH–95%RH
|
|
Power Consumption
|
≤ 1W (standby)
≤ 3W (working)
|
|
Net Weight
|
0.18 kg (0.40 lb)
|
|
Gross Weight
|
0.38 kg (0.84 lb)
|
Downloads
Additional Information
| Device |
Intercom Kit |
| Type |
Video |
Elevate your home security with the DHA KTH01 Video Intercom Kit. Featuring a 7" TFT touch screen, built-in WiFi, and two-way audio, this intercom allows seamless communication and monitoring. With advanced features like alarm inputs and video recording, you can ensure peace of mind and enhanced safety for your home. Upgrade your entryway experience today!
