System
|
|
Main Processor
|
Industrial-grade processor
|
|
Operating System
|
Embedded Linux
|
|
Operating Interface
|
Web, Local GUI
|
|
AI
|
|
AI by Recorder
|
Face detection, face recognition, perimeter protection, and SMD Plus;
|
|
AI by Camera
|
Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
|
|
Perimeter Protection
|
|
Perimeter Performance AI by Recorder (Number of Channels)
|
2 channels, 10 IVS rules for each channel
|
|
Perimeter Performance of AI by Camera (Number of Channels)
|
All channels (8 targets/s)
|
|
Face Detection
|
|
Face Attributes
|
Gender; age group; glasses; expressions; face mask; beard
|
|
Face Detection Performance of AI by Recorder (Number of Channels)
|
1 channel (up to 12 face images/s each channel)
|
|
Face Detection Performance of AI by Camera (Number of Channels)
|
All channels (8 targets/s)
|
|
Face Recognition
|
|
Face Database Capacity
|
Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
|
|
Face Recognition Performance of AI by Recorder (Number of Channels)
|
8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s
1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
|
|
Face Recognition Performance of AI by Camera (Number of Channels)
|
All channels (8 targets/s)
|
|
SMD Plus
|
|
SMD Plus by Recorder
|
4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
|
|
SMD Plus by Camera
|
All channels (16 targets/s)
|
|
Audio and Video
|
|
Access Channel
|
16 channels
|
|
Network Bandwidth
|
AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing
AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
|
|
Resolution
|
16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
|
|
Decoding Capability
|
AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps
AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps
|
|
Video Output
|
1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
|
|
Multi-screen Display
|
1st Screen: 1/4/8/9/16
2nd Screen: 1/4/8/9/16
|
|
Third-party Camera Access
|
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
|
|
Compression Standard
|
|
Video Compression
|
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
|
|
Audio Compression
|
G.711a; G.711u; PCM; G726
|
|
Network
|
|
Network Protocol
|
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
|
|
Mobile Phone Access
|
iOS; Android
|
|
Interoperability
|
ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK
|
|
Browser
|
Chrome; IE9 and later; Firefox
|
|
Recording Playback
|
|
Multi-channel Playback
|
Up to 16 channels
|
|
Record Mode
|
General, motion detection; intelligent; alarm
|
|
Backup Method
|
USB device and network
|
|
Playback Mode
|
Instant playback, general playback, event playback, tag playback, smart playback
|
|
Storage
|
|
Disk Group
|
Yes
|
|
Alarm
|
|
General Alarm
|
Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
|
|
Anomaly Alarm
|
Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
|
|
Intelligent Alarm
|
Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
|
|
Alarm Linkage
|
Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
|
|

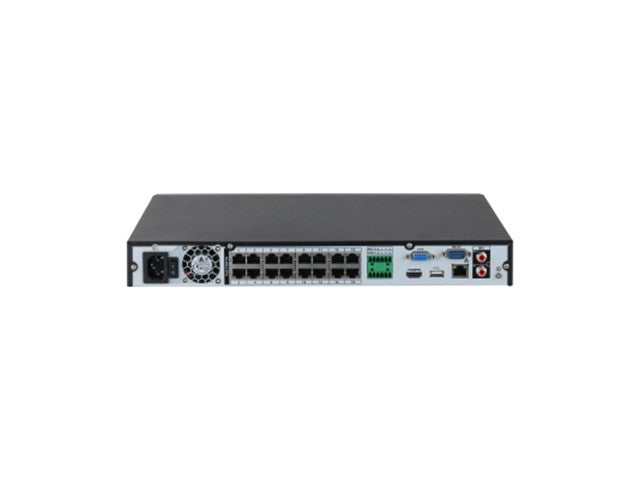

Port
|
|
Audio Input
|
1-channel RCA
|
|
Audio Output
|
1-channel RCA
|
|
Alarm Input
|
4 channels
|
|
Alarm Output
|
2 channels
|
|
Disk Interface
|
2 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature.
|
|
RS-232
|
1
|
|
USB
|
2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
|
|
HDMI
|
1
|
|
VGA
|
1
|
|
Network Port
|
1 (10/100/1000 Mbps Ethernet port, RJ-45)
|
|
PoE Port
|
16 ports, 10/100 Mbps, IEEE 802.3 af/at
|
|
General
|
|
Power Supply
|
100–240 VAC, 47-63 Hz
|
|
Power Consumption
|
Total output of NVR is <10 W(without HDD) Total output power of PoE is 130W,the maximum output power of asingle port is 25.5W
|
|
Net Weight
|
2.60 kg (5.73 lb)
|
|
Gross Weight
|
3.80 kg (8.38 lb)
|
|
Product Dimensions
|
375.0 mm × 329.3 mm x 53.0 mm (14.76" × 12.96" × 2.09") (W × L × H)
|
|
Packaging Dimensions
|
451.0 mm × 425.0 mm × 147.0 mm (17.75" × 16.73" × 5.79") (W × L × H)
|
|
Operating Temperature
|
–10 °C to +55 °C (14 °F to +131 °F)
|
|
Storage Temperature
|
–20 °C to +60 °C (–4 °F to +140 °F)
|
|
Operating Humidity
|
10%–93% (RH), non-condensing
|
|
Installation
|
Rack or desktop
|
