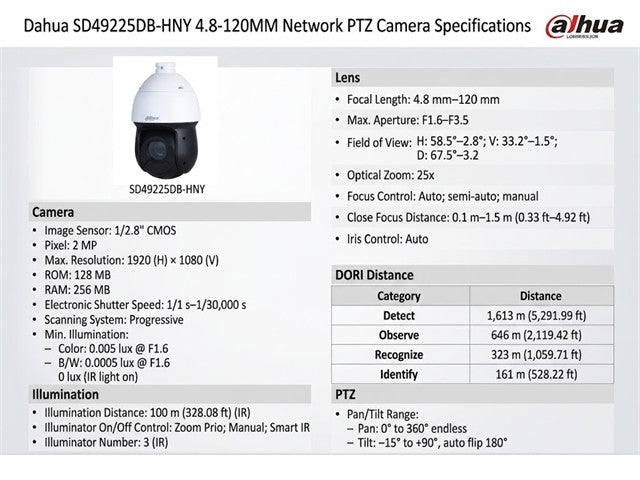

Camera
|
|
Image Sensor
|
1/2.8" CMOS
|
|
Pixel
|
2 MP
|
|
Max. Resolution
|
1920 (H) × 1080 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
256 MB
|
|
Electronic Shutter Speed
|
1/1 s–1/30,000 s
|
|
Scanning System
|
Progressive
|
|
Min. Illumination
|
Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)
|
|
Illumination Distance
|
100 m (328.08 ft) (IR)
|
|
Illuminator On/Off Control
|
Zoom Prio; Manual; Smart IR
|
|
Illuminator Number
|
3 (IR)
|
|

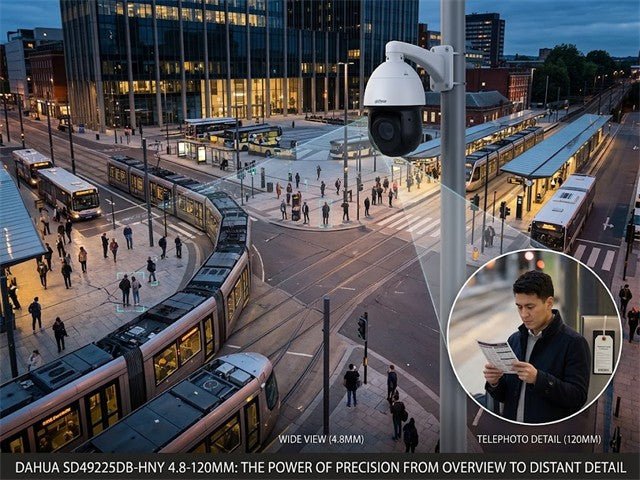

Lens
|
|
Focal Length
|
4.8 mm–120 mm
|
|
Max. Aperture
|
F1.6–F3.5
|
|
Field of View
|
H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2
|
|
Optical Zoom
|
25x
|
|
Focus Control
|
Auto; semi-auto; manual
|
|
Close Focus Distance
|
0.1 m–1.5 m (0.33 ft–4.92 ft)
|
|
Iris Control
|
Auto
|
|
DORI Distance
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
1,613 m (5,291.99 ft)
|
646 m (2,119.42 ft)
|
323 m (1,059.71 ft)
|
161 m (528.22 ft)
|
|
PTZ
|
|
Pan/Tilt Range
|
Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°
|
|
Manual Control Speed
|
Pan: 0.1°/s–80°/s
Tilt: 0.1°/s–80°/s
|
|
Preset Speed
|
Pan: 80°/s; Tilt: 80°/s
|
|
Preset
|
300
|
|
Tour
|
8 (up to 32 presets per tour)
|
|
Pattern
|
5
|
|
Scan
|
5
|
|
Power-off Memory
|
Yes
|
|
Idle Motion
|
Preset;Pattern;Tour;Scan
|
|
PTZ Protocol
|
DH-SD
Pelco-P/D (Auto recognition)
|
|
Intelligence
|
|
IVS (Perimeter Protection)
|
Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
|
|
Face Detection
|
Supports face detection, capturing pictures, and face enhancement
|
|
SMD
|
SMD 3.0
|
|
Auto Patrol
|
It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets
|
|
Video
|
|
Video Compression
|
Smart H.265+;H.265;Smart H.264+;H.264;H.264B;MJPEG(Sub Stream)
|
|
Streaming Capability
|
3 streams
|
|
Resolution
|
1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
|
Video Frame Rate
|
Main stream: 1080p/960p/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 1080p/960p/720p@(1–25/30 fps)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 1792 kbps–8192 kbps
H.265: 512 kbps–5632 kbps
|
|
Day/Night
|
Auto (ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
WDR
|
120 dB
|
|
HLC
|
Yes
|
|
White Balance
|
Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
|
|
Gain Control
|
Auto; manual
|
|
Noise Reduction
|
2D NR; 3D NR
|
|
Motion Detection
|
Yes
|
|
Region of Interest (RoI)
|
Yes
|
|
Image Stabilization
|
Electronic (EIS)
|
|
Defog
|
Electronic
|
|
Digital Zoom
|
16×
|
|
Image Rotation
|
180°
|
|
Privacy Masking
|
Up to 24 areas can be set, with up to 8 areas in the same view
|
|
S/N Ratio
|
≥ 55 dB
|
|
Audio
|
|
Audio Compression
|
G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729
|
|
Network
|
|
Network Port
|
RJ-45 (10/100 Base-T)
|
|
Network Protocol
|
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2);IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS
|
|
Interoperability
|
CGI; Dahua SDK; API; SDK; ONVIF (Profle S&G&T)
|
|
Streaming Method
|
Unicast/Multicast
|
|
User/Host
|
20 (total bandwidth: 64 M)
|
|
Storage
|
FTP; Micro SD card (512 GB); NAS
|
|
Browser
|
IE 7 and later versions
Chrome
Firefox
Safari
|
|
Management Software
|
DMSS; DSS Pro
|
|
Mobile Client
|
iOS; Android; iPhone; iPad
|
|
Certification
|
|
Certifications
|
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4- 2014
|
|
Port
|
|
Audio Input
|
1 channel (LINE IN, bare wire)
|
|
Audio Output
|
1 channel (LINE OUT,bare wire)
|
|
Alarm Linkage
|
Capture; preset; tour; pattern; recording; alarm digital input; audio; send email
|
|
Alarm Event
|
Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
|
|
Alarm I/O
|
2/1
|
|
Audio I/O
|
1/1
|
|
Power
|
|
Power Supply
|
12 VDC/3 A (± 10%)
PoE (802.3at)
|
|
Power Consumption
|
Basic: 12 W
Max.: 20 W (IR light)
|
|
Environment
|
|
Operating Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Operating Humidity
|
≤95%
|
|
Protection
|
IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection
|
|
Structure
|
|
Product Dimensions
|
270.4 mm × Φ160.0 mm (10.65" × Φ6.30")
|
|
Net Weight
|
2.4 kg (5.29 lb)
|
|
Gross Weight
|
3.9 kg (8.60 lb)
|
