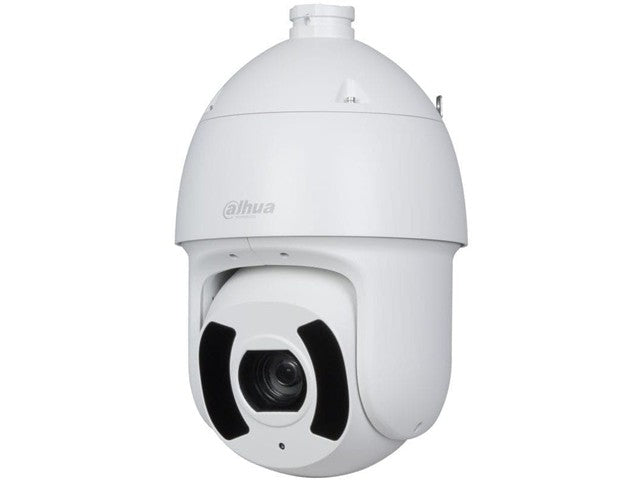

Dahua Starlight Wizsense Network PTZ 4MP 3.95~177.75mm, 250m IR, 1/2.8" 4Megapixel STARVIS CMOS, 45 x Optical Zoom, 120dB, Res.: 2560×1440, 2D/3D, Auto Tracking 3.0, Face Detection, SMD4.0, 24 VDC 2.5A, PoE+ (802.3at), IP67
Starlight Wizsense Network Camera
Feature(s)
- 1/2.8" 4Megapixel STARVIS™ CMOS.
- 45x optical zoom.
- Starlight technology.
- Max. 25/30fps@4M.
- IR distance up to 250 m.
- Auto-tracking 3.0.
- Perimeter protection.
- Face detection.
- SMD 4.0.
- IP67, IK10.

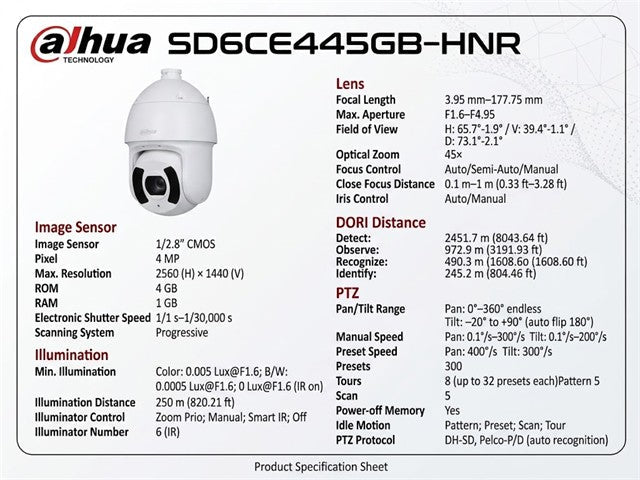

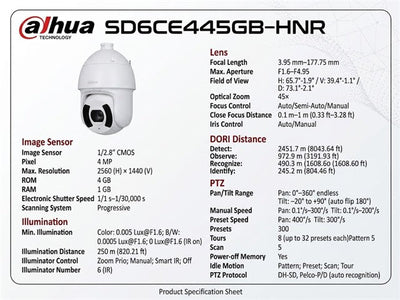

Specifications
| Max. Resolution |
2560 (H) × 1440 (V) |
| Electronic Shutter Speed |
1/1 s–1/30,000 s |
| Scanning System |
Progressive |
| Min. Illumination |
Color: 0.005 Lux@F1.6; B/W: 0.0005 Lux@F1.6; 0 Lux@F1.6 (IR on) |
| Illumination Distance |
250 m (820.21 ft) |
| Illuminator Control |
Zoom Prio; Manual; Smart IR; Off |
| Illuminator Number |
6 (IR) |
| Focal Length |
3.95 mm–177.75 mm |
| Field of View |
H: 65.7°–1.9° / V: 39.4°–1.1° / D: 73.1°–2.1° |
| Focus Control |
Auto/Semi-Auto/Manual |
| Close Focus Distance |
0.1 m–1 m (0.33 ft–3.28 ft) |
| DORI Distance |
Detect: 2451.7 m (8043.64 ft)
Observe: 972.9 m (3191.93 ft)
Recognize: 490.3 m (1608.60 ft)
Identify: 245.2 m (804.46 ft) |
| Pan/Tilt Range |
Pan: 0°–360° endless
Tilt: –20° to +90° (auto flip 180°) |
| Manual Speed |
Pan: 0.1°/s–300°/s
Tilt: 0.1°/s–200°/s |
| Preset Speed |
Pan: 400°/s
Tilt: 300°/s |
| Tours |
8 (up to 32 presets each) |
| Idle Motion |
Pattern; Preset; Scan; Tour |
| PTZ Protocol |
DH-SD, Pelco-P/D (auto recognition) |
| IVS (Perimeter Protection) |
Tripwire, intrusion, climbing fences, loitering, abandoned/missing object, fast moving, parking detection, people gathering, vehicle/human classification, linkage tracking |
| Face Detection |
Face detection, tracking, optimization, enhanced snapshots, attributes (gender, age, glasses, mask, mustache, expressions), face cutout, various capture strategies |
| Video Compression |
H.264H/B, Smart H.265+, H.264, H.265, MJPEG (Sub stream), Smart H.264+ |
| Streaming Capability |
3 streams |
| Supported Resolutions |
4M, 3M (1536p/1296p), 1080p, 720p, D1, VGA, CIF |
| Frame Rate |
Main: 1–25/30 fps (4M/3M/1080p/1.3M/720p)
Sub 1: D1/VGA/CIF (1–25/30 fps)
Sub 2: 1080p/1.3M/720p (1–25/30 fps) |
| Bit Rate |
H.264: 96–14848 kbps
H.265: 38–8960 kbps |
| Day/Night |
Auto (ICR); Color; B/W |
| White Balance |
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Privacy Masking |
Up to 24 areas (8 per view) |
| Audio Compression |
PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Network Port |
1 × RJ-45 (10/100 Base-T) |
Downloads
Additional Information
| Device |
Camera |
| Type |
Starlight | Wizsense | Network |
