DHN04T

SKU: DHN04T

BRAND: Communica

In Stock
R 23.92_{(inc VAT)}
R 20.80_{(ex VAT)}

Collections: Electromechanical

Category: DIP and SIP Switches

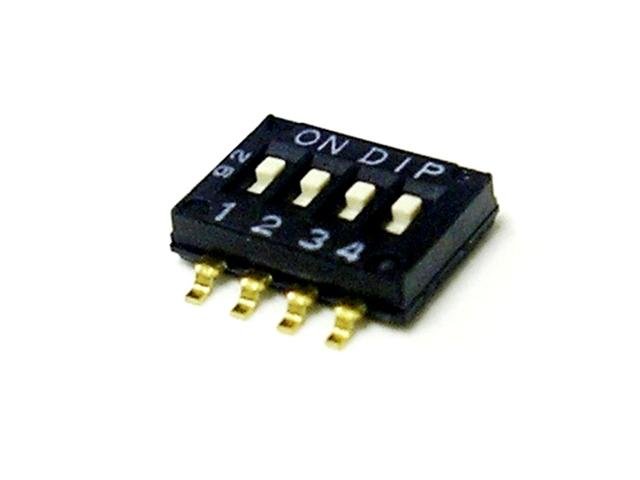

Half-Pitch Type DIP Switch • Pitch : 1,27mm • Form : 1A-SPST(NO) • 25mA-24VDC • 500gf • PCB-SMD Gull Wing

Half-Pitch Type DIP Switch

Specifications

Circuit	SPST
Number of Positions	4
Current Rating (Amps)	25mA
Voltage Rating	24VDC
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
Contact Material	Phosphor Bronze
Contact Finish	Gold
Height Above Board	0.063" (1.60mm)
Mounting Type	Surface Mount
Termination Style	Gull Wing
Pitch	0.050" (1.27mm), Half
Washable	Yes
Features	Tape Seal
Operating Temperature	-40°C ~ 85°C
Body Material	Thermoplastic
Length	0.248" (6.31mm)

Additional Information

Device	Switch
Type	Half-Pitch Type \| DIP
