DIL 14 PEK

Name: DIL 14 PEK - Communica [Part No: DIL 14 PEK]
Brand: Communica
SKU: DIL 14 PEK
Price: 2 ZAR
Availability: OutOfStock

SKU: DIL 14 PEK

BRAND: Communica

Sold Out
R 2.30_{(inc VAT)}
R 2.00_{(ex VAT)}

Collections: Connectors

Type: PCB Connectors

Category: IC Sockets

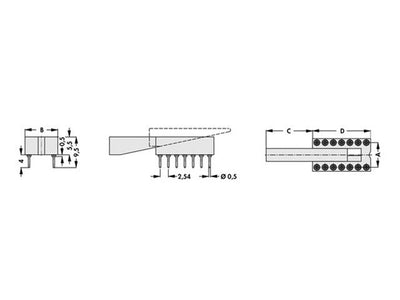

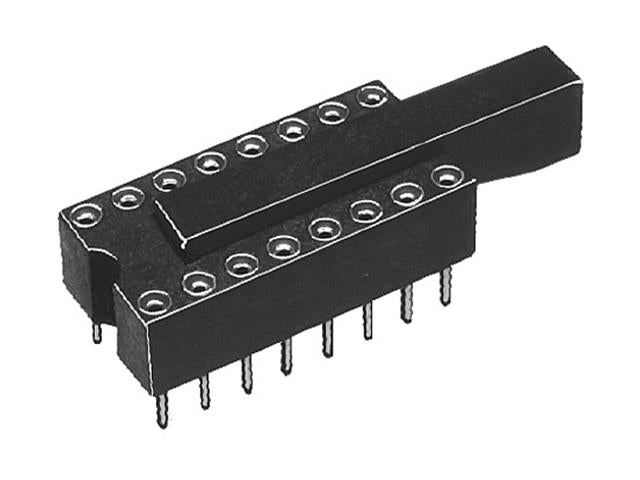

High Precision Test Socket Extractor

High Precision Test Sock-Extractor

Specifications

no. of contacts:	14
contact material:	CuZn-alloy
contact spring:	gold-plated
contact sleeve:	gold-plated
surface contact / contact sleeve:	Ni+≥0.2µm Au
inner contact spring material:	CuBe-alloy
inner contact spring surface:	Ni+0,75µm Au
plugability for circuit points:	0,22x0,25mm... 0,4x0,55mm Ø0,4...0,56mm
insert depth:	2.5...3.6mm
insertion / drawing force:	1.8 N/1.4 N 4 lamellas contact
shock resistance:	50 g
vibration resistance max.:	15 g
volume resistance:	10 mΩ
contact resistance:	4 mΩ
contact resistance after 1000 cycles:	7 mΩ
capacity between two adjacent contacts:	0,4 pF
nominal current:	1.5 A
nominal voltage:	150 V DC
test voltage:	1000 V
insulating body material:	PPS, GF
temperature range:	-40°C... +200°C (260°C/10 s)
class of inflammability:	UL 94 V-0
specific insulation resistance:	>10¹² Ω·m
reflow solderable:	yes

Additional Information

Device	Sock-Extractor
Type	High Precision \| Test

Discover the DIL 14 PEK High Precision Test Socket Extractor, designed for optimal performance with 14 contacts and durable gold-plated components. This reliable tool ensures secure connections with exceptional shock and vibration resistance, making it ideal for demanding applications. Upgrade your testing efficiency and accuracy today!
