DILS 14 GO

Name: DILS 14 GO - Communica [Part No: DILS 14 GO]
Brand: Communica
SKU: DILS 14 GO
Price: 1.18 ZAR
Availability: InStock

SKU: DILS 14 GO

BRAND: Communica

R 1.36_{(inc VAT)}
R 1.18_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: PCB Connectors

Category: IC Sockets

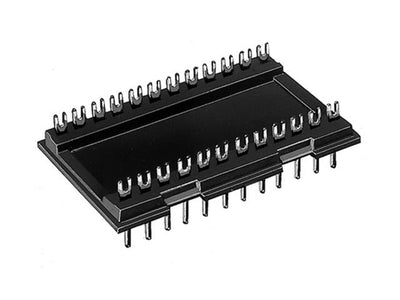

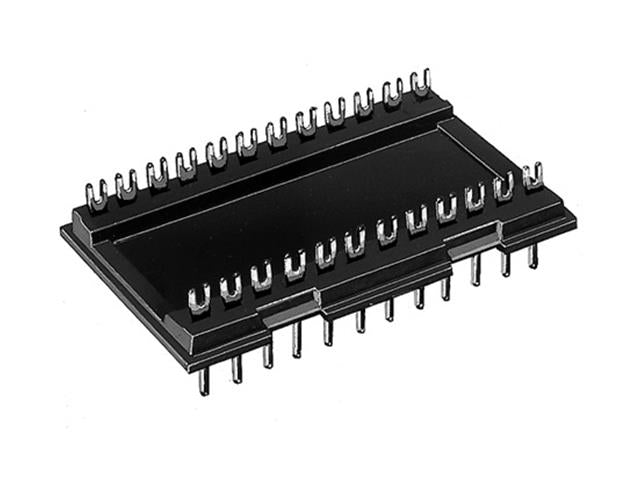

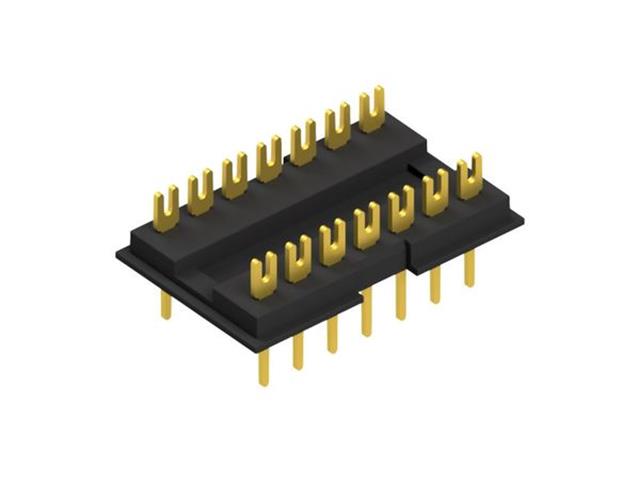

Ejector IC Socket

Specifications

no. of contacts:	14
contact material:	CuSn-alloy
surface contact / contact sleeve:	Ni+≥0.2µm Au
shock resistance:	50 g
vibration resistance max.:	15 g
volume resistance:	10 mΩ
contact resistance:	4 mΩ
contact resistance after 1000 cycles:	7 mΩ
capacity between two adjacent contacts:	0,4 pF
nominal current:	1.5 A
nominal voltage:	150 V DC
test voltage:	1000 V
insulating body material:	PPS, GF
temperature range:	-40°C... +200°C (260°C/10 s)
class of inflammability:	UL 94 V-0
specific insulation resistance:	>10¹² Ω·m
surface of contact:	gold-plated
reflow solderable:	yes

Additional Information

Device	Socket
Type	Ejector \| IC

Discover the DILS 14 GO Ejector IC Socket, designed for optimal performance with 14 contacts and superior gold-plated connections. Its robust construction ensures excellent shock and vibration resistance, making it perfect for demanding applications. Upgrade your projects with reliable durability and efficiency, supporting nominal currents up to 1.5 A and voltages of 150 V DC.
