DN2540N8-G

Name: DN2540N8-G - Communica [Part No: DN2540N8-G]
Brand: Communica
SKU: DN2540N8-G
Price: 15.25 ZAR
Availability: OutOfStock

SKU: DN2540N8-G

BRAND: Communica

Sold Out
R 17.54_{(inc VAT)}
R 15.25_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

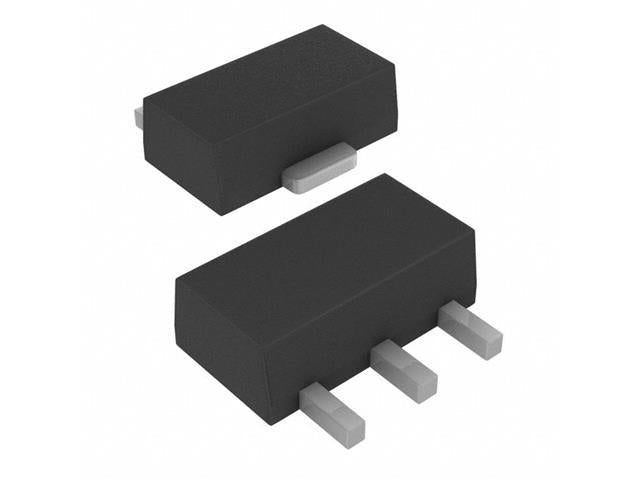

N-CH Depletion Mode 4000V 25E SOT-89 FET

Specifications

Drain to Source Voltage (Vdss)	400 V
Current - Continuous Drain (Id) @ 25°C	170mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	0V
Rds On (Max) @ Id, Vgs	25Ohm @ 120mA, 0V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	300 pF @ 25 V
FET Feature	Depletion Mode
Power Dissipation (Max)	1.6W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-243AA (SOT-89)

Downloads

Datasheet - DN2540N8-G

Additional Information

Device

Depletion Mode

Discover the DN2540N8-G N-CH Depletion Mode FET, designed for high-efficiency performance with a 400V drain-to-source voltage. With a compact SOT-89 package, it offers reliable power dissipation and operates effectively in extreme temperatures from -55°C to 150°C. Elevate your electronic projects with this versatile, high-performance FET today!
