BRAND: Dobot

Dobot Magician Basic Multifunctional Robotic Arm used for 3D Printing, Laser Engraving, Writting & Drawing.

Lead Time Order

Lead Time is 3 to 4 weeks from date of placing an order

You can send all enquiries to


As the buzzword “Industry 4.0” continues to gain steam throughout the manufacturing world, the DOBOT Magician presents itself as a full-fledged system that is capable of replicating the many processes that encompass this newfound industrial movement.

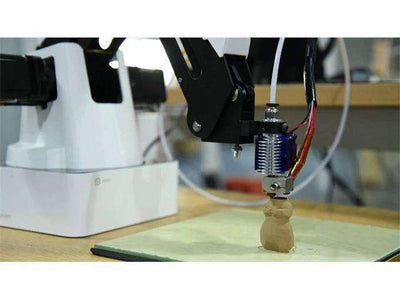

The purpose of the DOBOT Magician is quite simple: it’s a multifunctional and desktop-sized four-axis robotic arm designed for practical training education. It comes with a variety of toolheads, enabling 3D printing, laser engraving, writing and drawing, gripping, and vacuum pumping. You can watch a demonstration on the 3D printing capabilities of the robotic arm here

This robotic system can be used to write, draw, engrave, 3D print, or simply grab things. Whether it be soldering PCB boards or working with a 3D printing pen, the DOBOT Magician is highly capable of accomplishing a wide variety of tasks. In fact, it offers high positioning repeatability of up to 0.2mm, making it competitive with industrial robots

The open robotic system is compatible with 13 extensible interfaces and 20 programming languages, so users have numerous ways to control and direct the robotic arm. It includes a visualized programming interface that utilizes drag and drop command functions to make the coding process easier for students

Compared to other robotic training systems, the DOBOT Magician is both affordable and easy to operate. Students and makers can control the robotic arm via programming, APP, Bluetooth, and WiFi. Aside from the easy control methods, the manufacturer has also made it possible for more advanced makers to utilize the serial port SDK and motion control interface

There are two different models that are currently available from the manufacturer: the Basic Model ($1,399) and Educational Model ($1,699). As you might assume, the educationally-minded robotic system contains a few extra features that the cheaper model doesn’t offer

While both versions include end-tools for 3D printing, writing and drawing, gripping, and vacuum pumping, the Educational Model also provides a laser engraving kit, Bluetooth and WiFI modules, joystick controls, and more

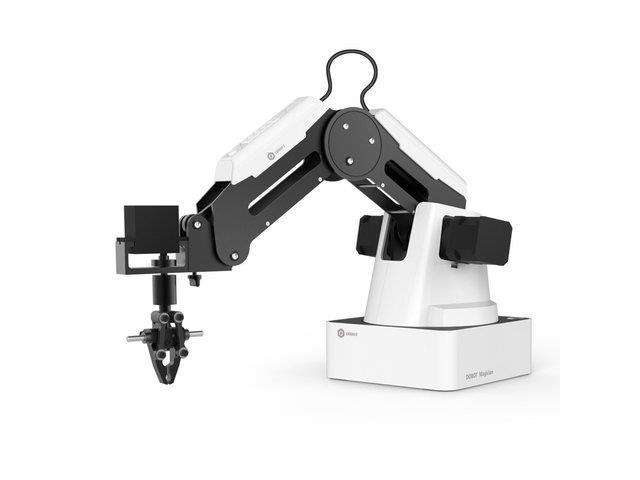

The DOBOT Magician is made up of industrial-grade components, including a stepper motor with a high accuracy gear reducer and high-strength aluminum alloy surface that is processed with an anodic oxidation treatment

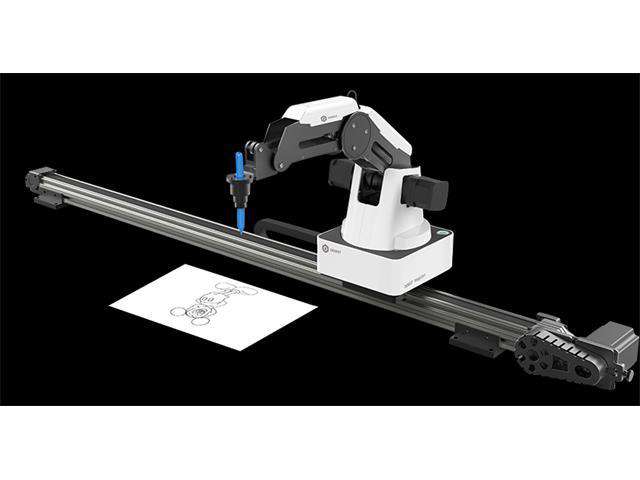

To further the capabilities of the DOBOT Magician, there are also a variety of add-ons that can be equipped to the system, including a linear rail kit, conveyor belt kit, visual kit, and crawler robot. The linear rail kit effectively expands the working area of the robotic arm, allowing it to travel a distance of 1000 mm. By utilizing the array of toolheads and graphical programming environment, users can complete tasks like writing a long letter or organizing objects together.





    • Number of Axis : 4
    • Payload : 500g
    • Max. Reach : 320mm
    • Position Repeatability (Control) : 0.2 mm
    • Connectivity : USB / WIFI / Bluetooth
    • Power Supply : 100 V – 240 V , 50/60 HZ
    • Power In : 12 V / 7A DC
    • Consumption : 60W Max
    • Working Temperature : -10°C – 60°C

Axis Movement

    • Joint 1 base – Range: -90° to + 90° / Max. Speed: 320° per second
    • Joint 2 rear arm – Range: 0° to +85° / Max. Speed: 320° per second
    • Joint 3 forearm – Range: -10° to +95° / Max. Speed: 320° per second
    • Joint 4 rotation servo – Range: +90° to -90° / Max. Speed: 480° per second


    • Net Weight : 3.4KG
    • Gross weight (Standard Version) : 7.2KG
    • Gross weight (Education Version): 8.0KG
    • Base Dimension (Footprint) : 158mm × 158mm
    • Materials : Aluminum Alloy 6061, ABS Engineering Plastic
    • Controller : Dobot Integrated Controller
    • Robot Mounting : Desktop
    • Packing Size : 330mm x 325mm x 410mm
    • Carton Size for Standard Version : 380mm x 385mm x 480mm
    • Carton Size for Education Version : 380mm x 385mm x 480mm


    • Software: DobotStudio, Repetier Host, GrblController3.6, DobotBlockly
    • SDK: Communication Protocol, Dobot Program Library


    • 3D Printer Kit
    • Maximum Print Size : 150 mm ×150 mm × 150mm
    • Material : PLA
    • Resolution : 0.1mm


    • Laser Power Consumption: 500mw
    • Laser Type: 405nm ( Blue laser)
    • Laser Power: 12V , TTL trigger ( With PWM Driver)

Pen Holder

    • Pen Diameter: 10mm
    • Vacuum Suction Cap
    • Cap Diameter: 20mm
    • Pressure: -35 Kpa


  • Range: 27.5mm
  • Drive Type: Pneumatic
  • Force: 8N
