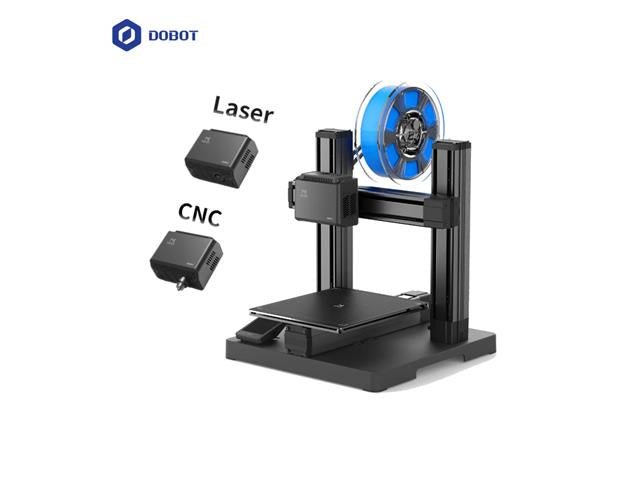

Dobot Mooz 2 Plus. Two Axis Industrial Grade Transformable 3D Printer used for 3D Printing, CNC Carving & Laser Engraving
Transformable 3D Printer
Overview
MOOZ-2 PLUS is designed with an upgraded heated bed, which comprises of a magnetic removable glass platform and a flexible steel print sheet. The glass platform possess a high modulus of elasticity and is thermally stable. Therefore, it remains flat and will ensure your bed’s leveling remains consistent throughout. After printing is finished, you can easily take down the flexible steel print sheet together with the print, gently bend the steel sheet, and the print will be popped off easily.

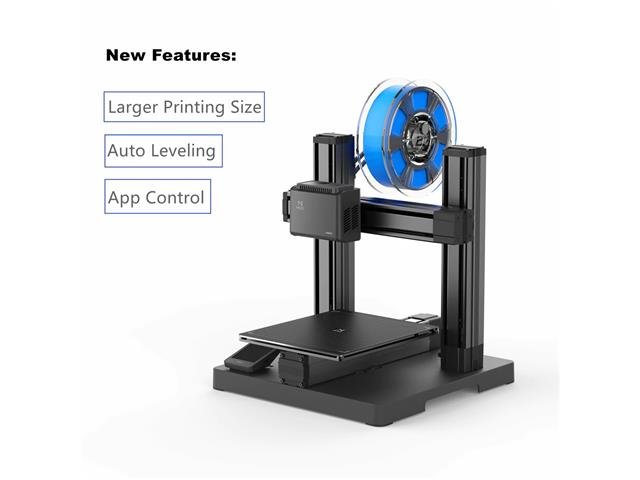

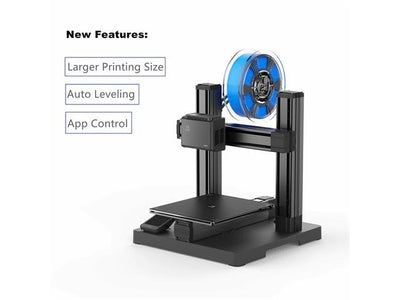

Features
Auto-Leveling
Flexible Build Plate
Filament Runout Detection
Auto Power Off
Power-Loss Recovery
Specifications
Parameters
Model
DT-MZ-2ZSG-03C
Shipping Size
X460 * Y425 * Z510mm
Dimensions
355 * 355 * 390mm
Number of Modules
4

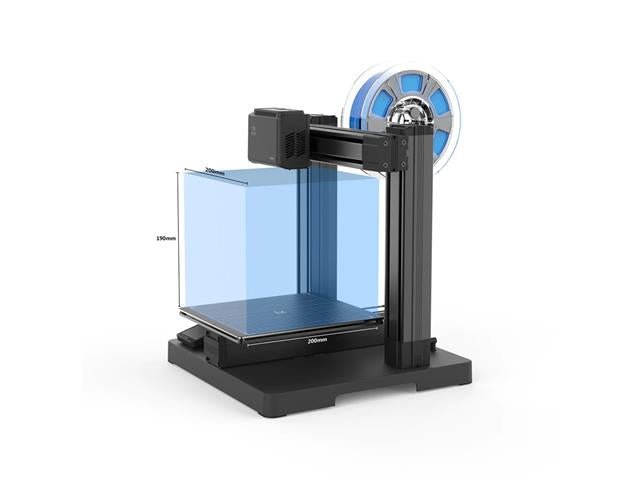

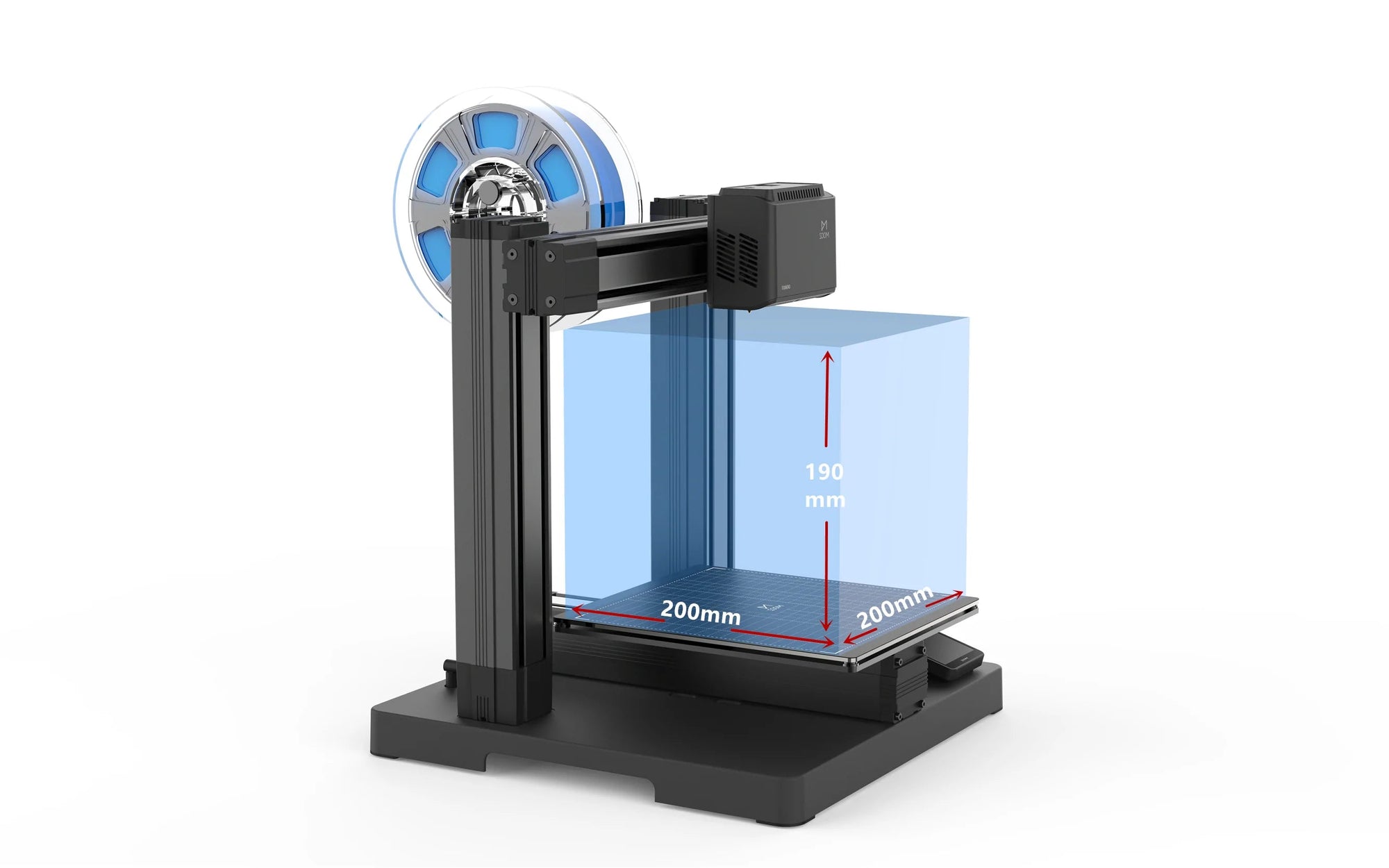

Forming Size
200 * 200 * 190mm
Frame Material
Aluminum alloys
Operation Panel
3.5-inch color touchscreen
Adapter Input
100-240V, 50/60Hz, 1.8Amax
Adapter Output
12V~10A, 120W
PC Software
MOOZ Studio/Cura
Protection Shield
Standard
3D Printing
Nozzle Diameter
0.4 mm
Layer Resolution
0.05~0.3 mm
Supported Materials
1.75mm PLA, TPU, PETG, & Flexible Materials
Effective Printing Speed
0 ~ 80mm/s
Nozzle Temp
250℃ Max.
Heat Bed Temp
80℃ Max. (25℃ambient temp.)
Heat Bed Material
Glass platform + Flexible steel print sheet
Printing Size
X200 * Y200 * Z190mm
Supported Files Types
STL, OBJ, JPEG, JPG, PNG, etc
Ambient Operating
10~40° C, 10~90% RH non condensing
Filament Runout Sensor
Mechanical switch, build inside 3D printing module
Leveling
Automatic Z-axis compensation, with magnetic independent auto leveling module
Unlock your creativity with the DOBOT MOOZ 2 PLUS, the ultimate transformable 3D printer for printing, CNC carving, and laser engraving. Featuring an upgraded heated bed and flexible build plate, it ensures flawless prints every time. Enjoy seamless auto-leveling, filament runout detection, and power-loss recovery for a hassle-free experience. Perfect for makers and professionals alike, elevate your projects with precision and ease!
