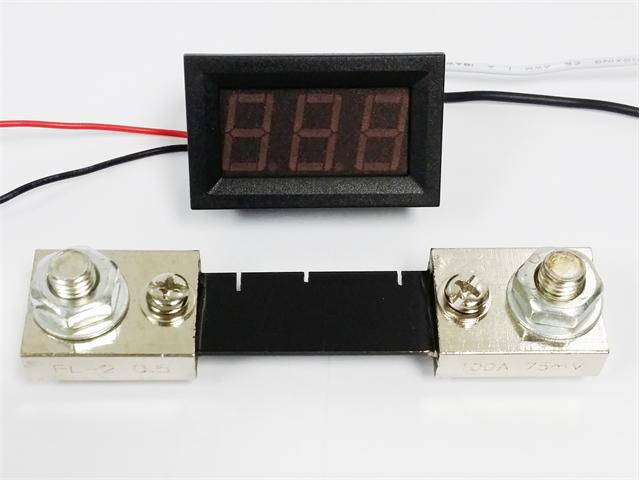

DPM/BDD DIG AMP METER 100A RED

SKU: DPM/BDD DIG AMP METER 100A RED

BRAND: Communica


Digital DC AMP Panel Meter 0-100A with 75mV Shunt. 3 Digit Red 0.56IN LED Display. Power Supply: DC4.5-28V. OD48x29x21mm

Digital DC AMP Panel Meter

Feature(s)

  • Measuring Range : DC0-100A (Connect with 100A/75mV shunt)
  • Display : Three 0.56 inch LED digital tube
  • LED Colours : Red
  • Power Supply : DC4.5-28V
  • Working Temperature : -10°C ~ 65°C
  • Power : Electronic
  • Usage : Ampere Meter tester
  • Resolution Ratio : 0.01A
  • Power Supply: DC4.5-28V
  • Working Temperature: -10°C ~ 65°C
  • Allowable Error : 1% (+ /-1)
  • Net Weight : 26g

Specifications

  • Measuring Range: DC0-100A
  • Current Consumption : > 20 mA, General 5-15 mA
  • Refresh Speed : 500ms/each time
  • Dimensions : 48mm x 29mm x 21 mm
  • Wire Length : 150mm

Additional Information

Device Panel Meter
Type Digital | DC | AMP
