DPM/BDD DIG AMP METER 10A RED

SKU: DPM/BDD DIG AMP METER 10A RED

BRAND: Communica

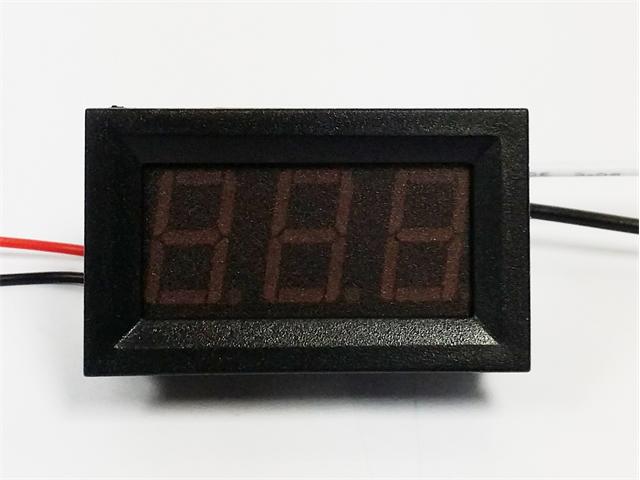

Digital DC AMP Panel Meter 0-10A Max. 3 Digit Red 0.56IN LED Display. Power Supply: DC4.5-28V. OD48x29x36mm

Digital DC AMP Panel Meter

Overview

IMPORTANT: Note the Connection Diagram for Single Supply on the Web!

Specifications

  • Measuring Range : DC0-10A (Connect with 10A/75mV shunt)
  • Display : Three 0.56 inch LED digital tube
  • LED Colours : Red
  • Power Supply : DC4.5-28V
  • Working Temperature : -10°C ~ 65°C
  • Minimum Resolution : 100mA
  • Power : Electronic
  • Usage : Ampere Meter Tester
  • Power Supply: DC4.5-28V
  • Current Consumption : > 20 mA, general 5-15 mA
  • Refresh Speed : 500ms/each time
  • Dimensions : 48mm x 29mm x 21 mm
  • Wire Length : 150mm

Downloads

Additional Information

Device Panel Meter
Type Digital | DC | AMP
