DPM/BDD DIG AMP METER 50A RED

Name: DPM/BDD DIG AMP METER 50A RED - Communica [Part No: DPM/BDD DIG AMP METER 50A RED]
Brand: Communica
SKU: DPM/BDD DIG AMP METER 50A RED
Price: 112.17 ZAR
Availability: InStock

SKU: DPM/BDD DIG AMP METER 50A RED

BRAND: Communica

In Stock
R 129.00_{(inc VAT)}
R 112.17_{(ex VAT)}

Collections: Test & Measurement

Type: Panel Meters

Category: Digital DC AMP Panel Meter

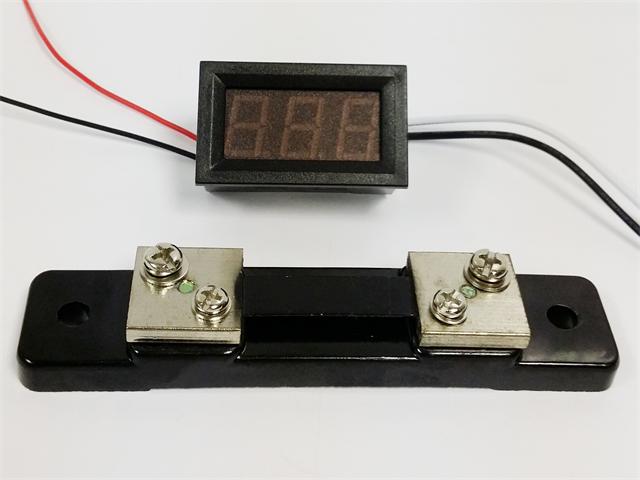

Digital DC AMP Panel Meter 0-50A with 75mV Shunt. 3 Digit Red 0.56IN LED Display. Power Supply: DC4.5-28V. OD48X29X36MM

Digital DC AMP Panel Meter

Overview

IMPORTANT: Note the Connection Diagram for Single Supply on the Web!

Feature(s)

Measuring Range : DC0-50A (Connect with 50A/75mV shunt)
Display : Three 0.56 inch LED digital tube
LED Colours : Red
Power Supply : DC4.5-28V
Working Temperature : -10°C ~ 65°C
Power : Electronic
Usage : Ampere Meter tester
Resolution Ratio : 0.01A
Power Supply: DC4.5-28V
Working Temperature: -10°C ~ 65°C

Specifications

Measuring Range: DC0-50A
Current Consumption : > 20 mA, general 5-15 mA
Refresh Speed : 500ms/each time
Dimensions : 48mm x 29mm x 21 mm
Wire Length : 150mm

Downloads

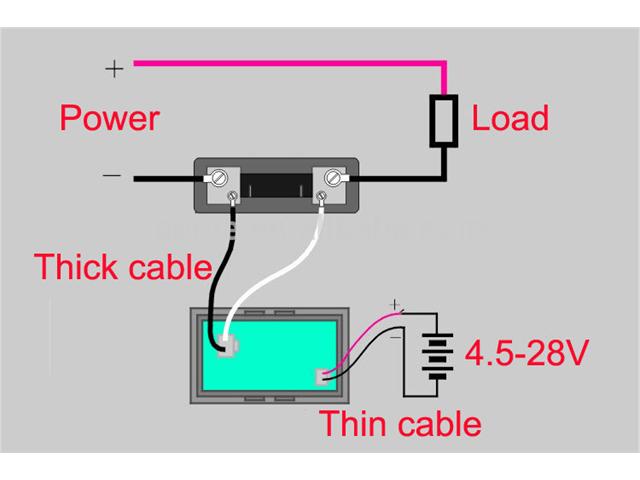

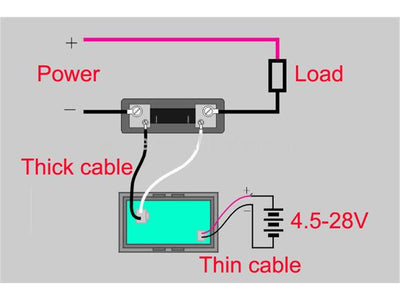

Wiring Diagram - AMP METER 50A RED

Additional Information

Device	Panel Meter
Type	Digital \| DC \| AMP
