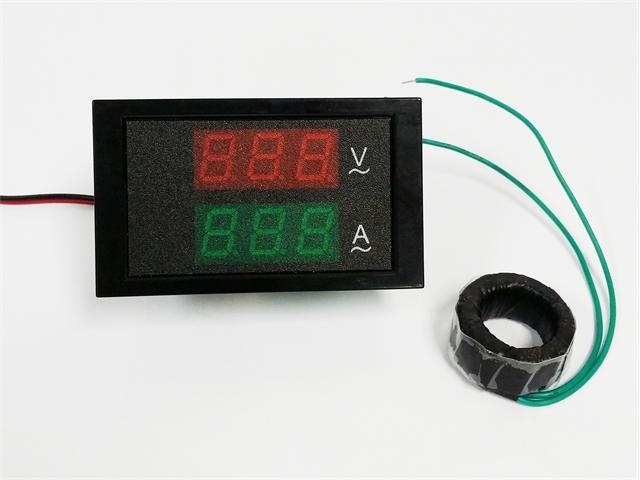

Dual Digital AC AMP/ACVolt Panel Meter. 0-100A AC Green/80-300VAC Red-4 Digit X2 LED Display. OD70×41×44mm
Dual Digital AC AMP/ACVolt Panel Meter
Feature(s)
Display Type : Digital Only
Dual Red & Green LED display
Low Power Consumption.
Doesn't require a additional power
Volts and Amps Display Simultaneously
Specifications
Measuring Range : AC 80/ 300V 100A
Testing current : 0-100A
Voltage : AC80~300V
Accuracy Class : 1%(±1)
Current : 0~100A
Resolution : ±1%fs+1 digit
Operating Temperature : -10 ~ 65
Operating Humidity : 35 ~ 85% RH
Panel Cutout : 68mm×38mm
Dimensions Size : 70mm x 41mm x 44mm
Additional Information
Device
Panel Meter
Type
Dual | Digital | AC | AMP/ACVolt
Upgrade your monitoring with the DPM/BDD DIG Dual AC300V 100A R/G Panel Meter. This dual digital display meter shows AC voltage and current simultaneously, ensuring precise readings from 0-100A and 80-300VAC. Its low power consumption and compact design make it an efficient choice for any setup. Perfect for both professionals and DIY enthusiasts, enhance your electrical projects effortlessly.
