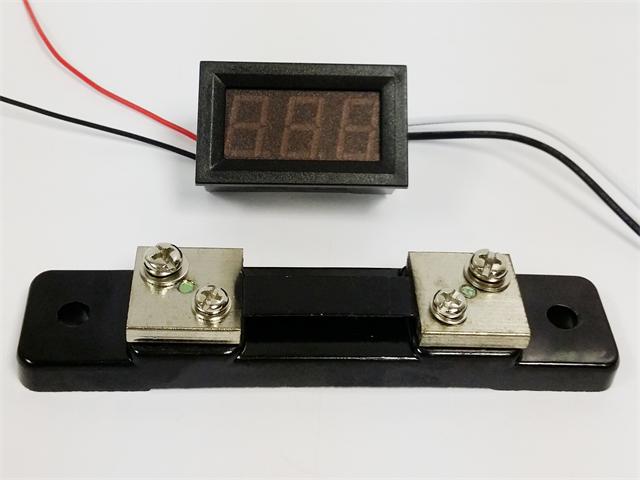

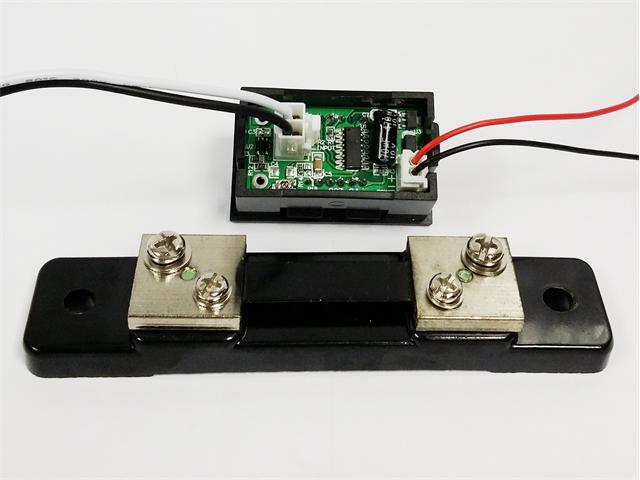

50ADC Digital Amp Panel Meter with 75mV Shunt, 4.5-28VDC Power Supply
and 3 Digit Red 0.56 Inch LED Display in 48x29x36mm
Digital Ampere Panel Meter with Red LED display and Shunt
Overview

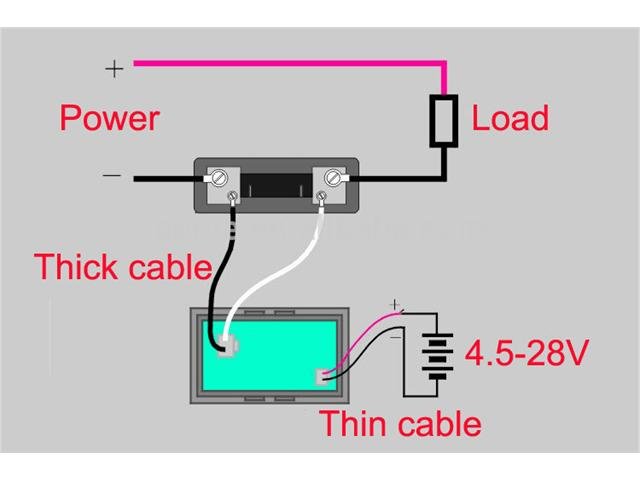

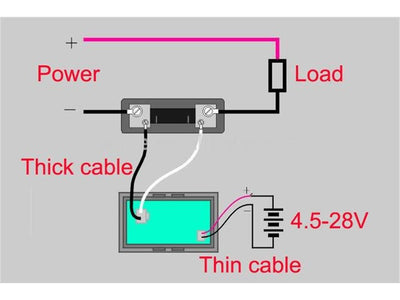

IMPORTANT: Note the Connection Diagram for Single Supply on the Web!
Feature(s)
- Measuring Range : DC0-50A (Connect with 50A/75mV shunt)
- Display : Three 0.56 inch LED digital tube
- LED Colours : Red
- Power Supply : DC4.5-28V
- Working Temperature : -10°C ~ 65°C
- Power : Electronic
- Usage : Ampere Meter tester
- Resolution Ratio : 0.01A
- Power Supply: DC4.5-28V
- Working Temperature: -10°C ~ 65°C
Specifications
- Measuring Range: DC0-50A
- Current Consumption : > 20 mA, general 5-15 mA
- Refresh Speed : 500ms/each time
- Dimensions : 48mm x 29mm x 21 mm
- Wire Length : 150mm
Downloads
Additional Information
Device |
Panel Meter |
Type |
Digital | Ampere | Red |
Highlights |
Measures 50A |
