DPM/HKD DIGITAL DUAL 100V 50A RB - Panel Meters -

DPM/HKD DIGITAL DUAL 100V 50A RB

Name: DPM/HKD DIGITAL DUAL 100V 50A RB - Communica [Part No: DPM/HKD DIGITAL DUAL 100V 50A RB]
Brand: Communica
SKU: DPM/HKD DIGITAL DUAL 100V 50A RB
Price: 104.35 ZAR
Availability: InStock
Rating: 1.00 (1 reviews)

SKU: DPM/HKD DIGITAL DUAL 100V 50A RB

BRAND: Communica

R 120.00_{(inc VAT)}
R 104.35_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Test & Measurement

Type: Panel Meters

Category: Digital Panel Meters

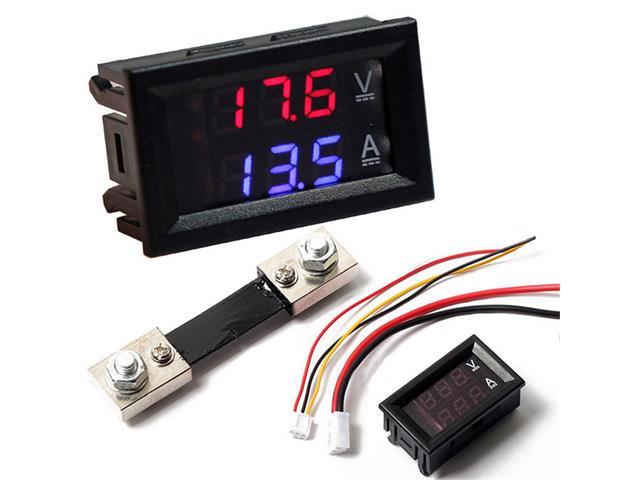

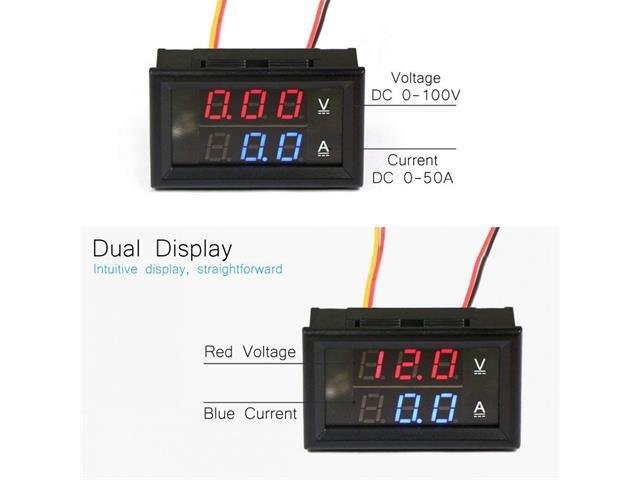

Digital Panel Meter, Supply Voltage 4 - 30VDC, Red Display Voltmeter 0 - 100VDC, Blue Display Ammeter 0 - 50ADC Complete with Shunt

Digital Panel Meter

Overview

The maximum input voltage can not exceed 30V, otherwise there is the danger of burning. Working Voltage: 4.5-30V DC

Specifications

Working Current: ≤20mA
Display: 0.28 inch Two color blue and red
Measuring Range: DC 0-100V 0-10A
Minimum Resolution (V): 0.1V
Refresh Rate: ≥100mS / times
Measure Accuracy: 1% (± 1 digit)
Minimum Resolution (A): 0.01A
Operating Temperature: -15 to 70° c
Working Pressure: 80 to 106 kPa

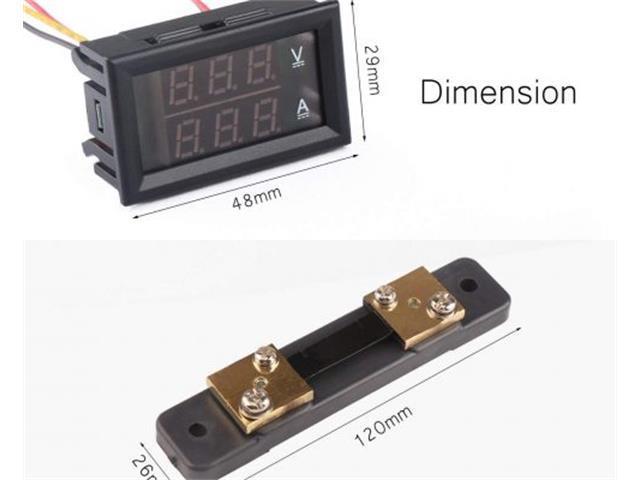

Size: 47 x 28 x16 mm/1.85 x 1.10 x 0.63 inch
Color: Black

Additional Information

Device	Panel Meter
Type	Digital

Monitor your power with the DPM/HKD Digital Dual Meter, featuring a vibrant red voltmeter (0-100V) and blue ammeter (0-50A). Compact and accurate, this essential tool ensures precise voltage and current readings, enhancing your electrical projects while promoting safety and efficiency. Upgrade your setup today for reliable performance!

Disappointing! Now wiring diagram were supplied and the one provided on your website for a similar

Disappointing!
Now wiring diagram were supplied and the one provided on your website for a similar device is wrong! I eventually found the right instructions on the AliExpress website but when I connected it the ampere reading were not working.
