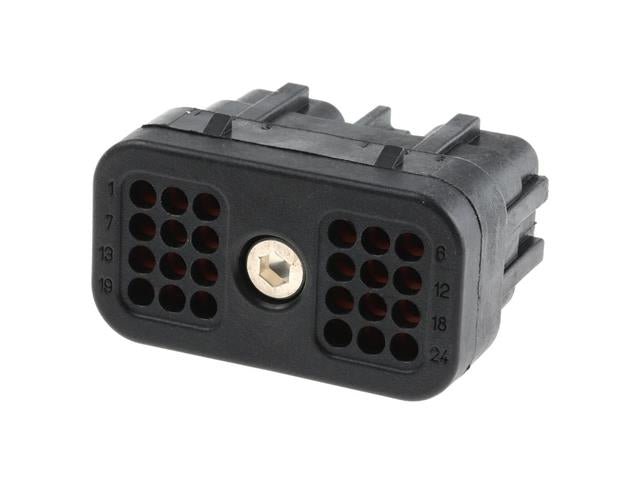

Deutsch DRC26 Series is a fully enviromentally sealed high density PCB connector, ideally suited for use within engine control systems, electronic panels. The DRC26 series connector incorporates silicon seals and its rugged thermosplastic connector housing can withstand high temperature ranges as well as offering excellent environmental protection.

• Number of Contacts : 24
• Gender : Male
• Body Orientation : Straight
• Current Rating : 7.5A
• Housing Material : Polymer
• Length : 50.9mm
• Width : 39.62mm
• Depth : 31.6mm
• Contact Plating : Nickel
• Dimensions : 50.9 x 39.62 x 31.6mm
• Series : DRC
• Contact Material : Copper Alloy

Device	Connector
Type	D-sub
