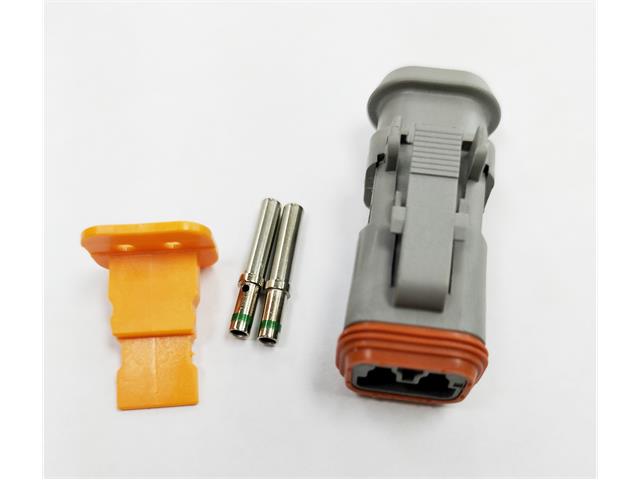

Deutsch Automotive Female Receptacle - 2 Pole come with W2-S Wedge Lock and two 0462-209-16141 14AWG Female Crimp Terminals
Automotive Female Receptacle
Specifications
Product Type Features
- Connector & Housing Type : Housing for Female Terminals
- Connector System : Wire-to-Wire
- Sealable : Yes
- Hybrid Connector : No
- Primary Locking Feature : Integrated in Housing
- Connector & Contact Terminates To : Wire & Cable
- Strain Relief : Add By Accessory
Configuration Features
- Blank Cavity Position : 0
- Number of Positions : 2
- Number of Rows : 1
Electrical Characteristics
- Nominal Voltage Architecture : 12 V, 24 V, 48 V
- Operating Voltage : 250 VDC
Body Features
- Cable Exit Angle : 180°
- Body Material : PA GF
- Primary Product Color : Gray
Contact Features
- Mating Pin Diameter : 1.59 mm[.0625 in]
- Contact Current Rating (Max) : 13 A
Mechanical Attachment
- Terminal Position Assurance : Yes
- Mounting Feature : Without
- Polarized : Polarized
Housing Features
- Centerline (Pitch) : 5.46 mm[.215 in]
Dimensions
- Accepts Wire Insulation Diameter Range : 2.23 – 3.68 mm[.088 – .145 in]
- Height : 15.77 mm[.621 in]
- Length : 40.92 mm[1.611 in]
- Width : 15.01 mm[.591 in]
Usage Conditions
- Operating Temperature (Max) : 125 °C[257 °F]
- Operating Temperature Range : -55 – 125 °C[-67 – 257 °F]
Operation/Application
- Circuit Application : Power & Signal
Industry Standards
- Degree of Protection : IP68, IP6K9K
- Agency/Standard : SAE J2030
- UL Flammability Rating : 12mm Flame Test per Standard UL-94
Downloads
Additional Information
| Device |
Receptacle |
| Type |
Automotive | Female |
Upgrade your automotive connections with the DT06-2S-E008 KIT. This durable 2-pole female receptacle features a secure W2-S wedge lock and includes high-quality 14AWG crimp terminals for reliable performance. Designed to withstand extreme conditions, it ensures a robust power and signal connection for your vehicle. Enhance your vehicle’s wiring system with this essential, high-performance connector.
