DTA114YE-TL

Name: DTA114YE-TL - Communica [Part No: DTA114YE-TL]
Brand: Rohm
SKU: DTA114YE-TL
Price: 0.53 ZAR
Availability: InStock

SKU: DTA114YE-TL

BRAND: Rohm

R 0.61_{(inc VAT)}
R 0.53_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: PNP Digital Transistor

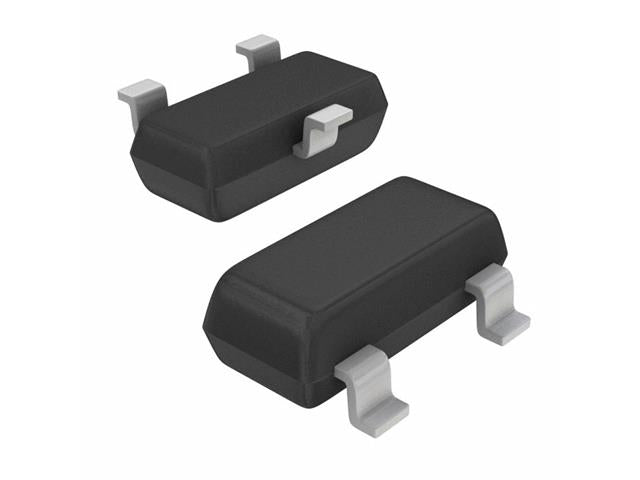

TRANSISTOR PNP 50V 100MA 150MW EM3 PKG

Specifications

Transistor Type	PNP - Pre-Biased
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	50 V
Resistor - Base (R1)	10 kOhms
Resistor - Emitter Base (R2)	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	68 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 250µA, 5mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transition	250 MHz
Power - Max	150 mW
Mounting Type	Surface Mount

Downloads

Datasheet - DTA114YE-TL

Additional Information

CatGroup

Transistor

Discover the DTA114YE-TL PNP Transistor, designed for efficiency with a maximum collector current of 100 mA and a breakdown voltage of 50 V. This pre-biased surface mount transistor offers reliable performance with a DC current gain of 68, making it ideal for your electronic projects and applications. Enhance your circuit designs with this compact, high-frequency solution that delivers consistent power and low saturation levels.
