DTS66R

SKU: DTS66R

BRAND: Communica

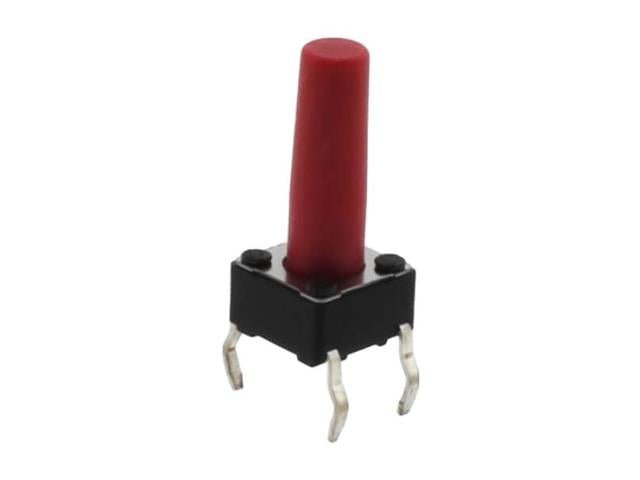

Tactile Switch • Form : 1A - SPST (NO)/4Termn • 50mA-12VDC • 260gf • PCB-ThruHole • Red • Case Size : 6x6mm Height :13mm

Overview

Features

Specification



Transition Style Momentary
Actuator Style Push-Button
Actuating Force 260gf
Termination PCB-ThruHole
Switch Circuit 1A - SPST (NO)/4Termn
Electrical Rating 50mA-12VDC
Color Red
Case Length 6mm
Case Width 6mm
Case Height 13mm
