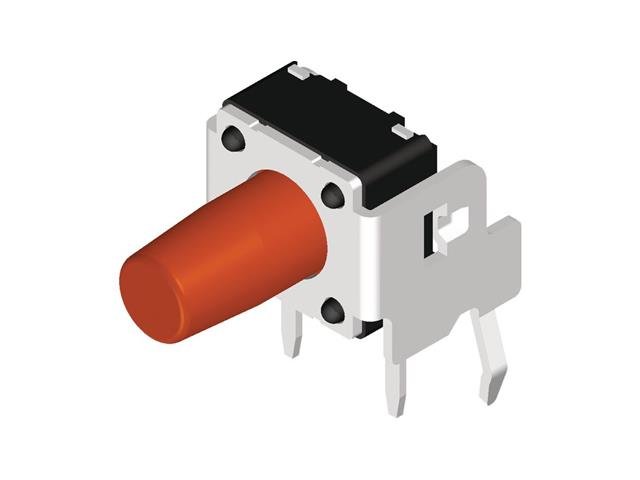

DTSA63R

SKU: DTSA63R

BRAND: Communica


Tactile Switch • Form : 1A - SPST (NO)/4Termn (2Termn Grounded) • 50mA-12VDC • 260gf • Right-Angle-PCB-ThruHole • Red • Case Size : 6x6 ,Height : 5.85,Lever : 3.3mm

Overview

Features

Specification



Transition Style Momentary
Actuator Style Push-Button
Actuating Force 260gf
Termination Right-Angle-PCB-ThruHole
Switch Circuit 1A - SPST (NO)/4Termn (2Termn Grounded)
Electrical Rating 50mA-12VDC
Color Red
Case Length 6mm
Case Width 6mm
Case Height 5.85mm
Lever Size 3.3mm
