DTSM62N

SKU: DTSM62N

BRAND: Communica

In Stock
R 4.01_{(inc VAT)}
R 3.49_{(ex VAT)}

Collections: Electromechanical

Category: Tactile Switches

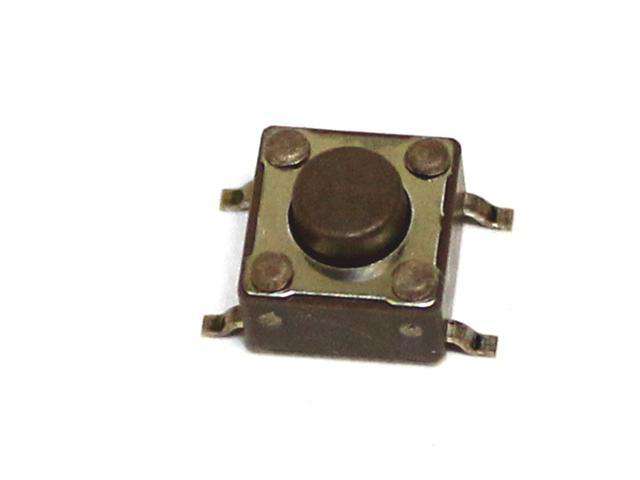

50mA 12VDC Brown Tactile Micro Switch

Overview

Features

Specification

Switch type : Microswitch
Stable positions number : 1-position
Contacts configuration : SPST-NO
DC contacts rating (at resistance load) : 0.05 A / 12 VDC
Mounting : SMT
Switching torque : 1.6N

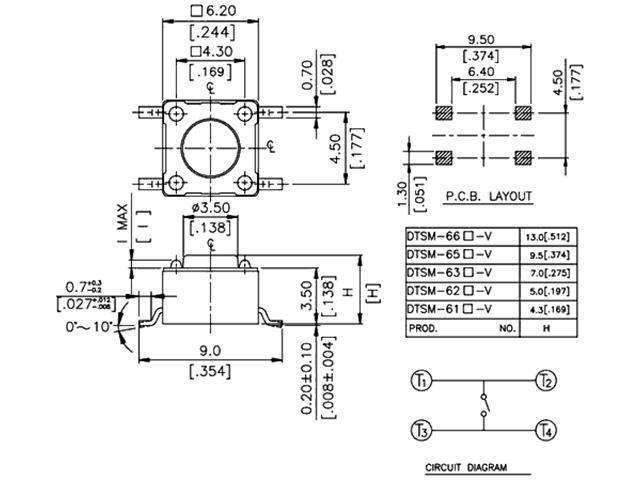

Body dimensions : 6.2 x 6.2mm
Button height (measured from PCB) : 5mm
Switching method : Off-(On)
Button shape : Round
Terminal pitch : 4.5x9mm
Operating temperature : -25~70°C
Actuator colour : Brown
Leads : for PCB
Electrical life : 200000 cycles
Contact material : phosphor bronze

Voltage Rating	12V
Voltage Type	DC
Current Rating	0.05A
Actuator Colour	Brown
Button	Round
Size	6.2mm x 6.2mm
Temperature	-25~70°C

Downloads

Datasheet Download
