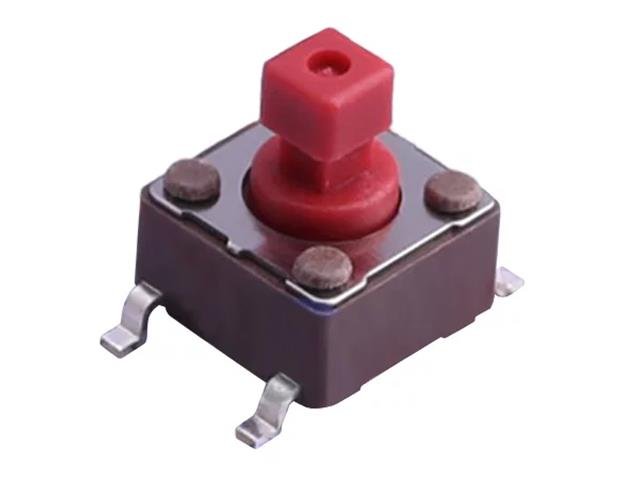

DTSM644R

SKU: DTSM644R

BRAND: Communica


Tactile Switch • Form : 1A - SPST (NO)/4Termn • 50mA-12VDC • 260gf • SMD • Red • Case Size : 6x6 / 7.3(sq)x2.4,Lever : 3.8mm

Overview

Features

Specification



Transition Style Momentary
Actuator Style Push-Button
Actuating Force 260gf
Termination SMD
Switch Circuit 1A - SPST (NO)/4Termn
Electrical Rating 50mA-12VDC
Color Red
Case Length 6mm
Case Width 6mm
Case Height 7.3mm
Lever Size 3.8mm
