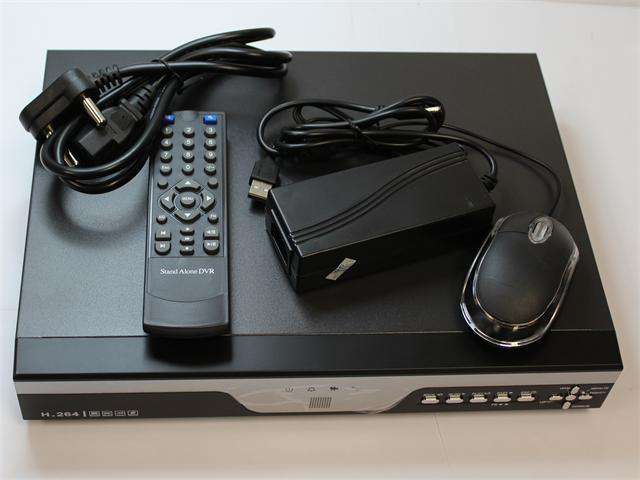

DVR XY6204 AHD 1080N

• Powerful Huawei Chipset
• H.264
• LINUX OS
• 2 SATA HDD (each max support 6TB) Not Included

Power

• 12V/4A.VGA & HDMI Output
• 4CH RCA Audio Input
• 1 RCA Out
• 2CH Alarm Input
• Alarm Output

• Model | DVR XY6204 AHD 1080N
• System | Main processor | Industrial grade embedded micro controller chip Huawei HIS chipset
• Operating System | Embedded LINUX Operating System
• System Resource | Multi-Channel Real-Time Recording Synchronously, Multi-Channel Real-Time Playback, Multi-Channel Multi-User Network Operation, USB back up.
• Display | Operation interface | 16 bit real color GUI interface support mouse operation
• Display screen (Take all analog input as an example, others are depended on the selected channel mode) and 1/4 screen
• Video | Image encode | H.264(High Profile)
• Monitor quality | VGA : 1080P, HDMI : 1080P
• Playback quality | Max support 1080P under HVR and NVR mode, Max support AHD 1080P under DVR mode
• Encode capability | 4CH AHD 1080N real time(DVR mode)
• Decode capability | 4CH AHD 1080N (DVR mode)
• Multi-Mode Video Input | DVR Mode | 4CHx1080N/4CHx720P/4CHxAHDL
• HVR mode | 4CHx720P (AHD) +4CHx720P(IPC)
• NVR mode : 8CHx1080P /4CHx1080P/1CHx1080P
• Motion detection | Each channel can set 192 (16*12) detection area, can set multi-level of flexibility (for local analog channel only)
• Audio | Audio compression | G.711A

Record and playback

• Record mode | Manual, alarm, motion detection, timing
• Local playback | 1-4ch playback synchronously, Under the mode of DVR, Max support 4CH AHD 1080N playback synchronously
• Video search | Time, date, event, channel search

Storage and back up Space and Others

• Video | CIF 4~5G/day*channel | D1 8~10G/day*channel 720P 20G/day*channel | 960H 12~20G/day*channel | audio | 691.2M/day*channel
• Video storage | Local HDD, Network
• Back Up Mode | Network Backup, USB portable HDD, USB DVD-RW
• Interface | Video input | 4CH BNC
• Video output | 1CH VGA, 1CH HDMI
• Audio input | 4CH RCA
• Audio output | 1CH RCA
• Alarm input | 2CH
• Alarm output | 1CH
• Network port | RJ45 10M/100M Self-adaptive Ethernet Port
• PTZ control | 1 RS485, Support Multi Kinds of PTZ Protocol
• USB Port | 2*USB2.0
• HDD Port | 2 SATA (each max support 6TB)
• Wireless Port | G, WIFI(extension via USB Port)
• Remote Controller | Yes
• Power | 12V/4A
• Dimension | 25(Length) x 230(Width) x 52(Height)
