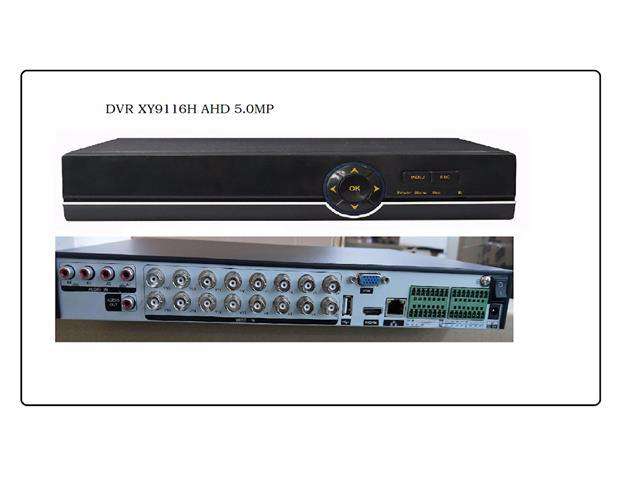

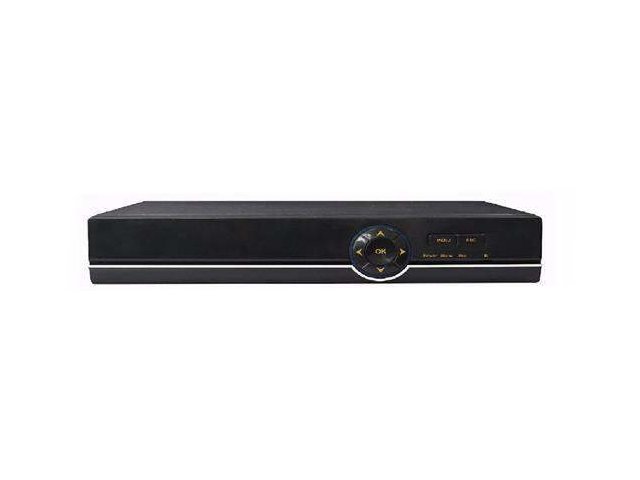

DVR XY9116H AHD 5.0MP

• System : Main chip : Hi3531A
• OS : LINU
• System Resources : Multi-channel Realtime recording, Multi-channel playback, Multi-channel network operation, USB Backup
• Interface : Operation menu : 16-bit true color graphical menu interface, mouse operation supported

• Display : 1/4/8/9/16display (take the pure coaxial input mode as an example)
• Video : Format : H.264
• Output : VGA (Max up to 1080P) ;HDMI (Max up to 4K)
• Preview : 16*5M@20fps(AHD)/ 16*3M@18fps(AHD)/16*1080P(5 in 1)
• Recode : 16*5M@11fps(AHD)/ 16*3M@10fps(AHD)/16*1080P @12fps (5 in 1) / 16*720P(5 in 1)
• Decode : 8*5M@8fps(AHD)/ 8*3M@10fps(AHD)/16*1080P @12fps (5 in 1) / 16*720P(5 in 1)
• Multi-mode Input : AHD:16*5M;20fps
• Hybrid:8*5M (CVBS) +8*5M (IP)
• NVR:16*5M
• Motion Detect Each view window can set 192(16*12)detection area,can set multi-level sensitivity (only for local channel)

Audio:

• Audio : G.711A
• Intercom : Support

• Record and Playback

• Recording mode : Manual, Alarm, Motion Detect, Timer
• Local playback : 8 Channel (when Analog mode)
• Video search : Time, Date,Event,Channel search

Storage and Backup

• Storage : Local HDD, Network

Backup

• Network backup, external HDD, USB Drive, HDD

Port

• Video Input : 16 * BNC
• Video Output : 1 * VGA, 1 * HDMI
• Spot Monitor : No
• Audio Input : 4 * RCA
• Audio Output : 1 * RCA
• Alarm Input : 8 channels
• Alarm Output : 1 channel
• Network port : RJ45 10M/100M
• PTZ Control : 1 * RS485 Support multipal PTZ Contract
• USB port : 2 * USB Port
• HDD Port : 2 * SATA hdd ports (up to 6T for each one)
• Wireless Port : 3G, WIFI(can be USB WIFI Dongle)

Others

• Power : 1 * HDD: 12V/2A: 2 * HDD: 12V/5A: 4 * HDD: 12V/6A
• Power consumption : Less than 15W (no HDD)
• Working temperature : 0°-+55°
• Working humidity : 10%-90%
• Atmospheric pressure : 86kpa-106kpa
• packing Size : 56.7*-36.7*32.6cm
• Weight : 13kg
