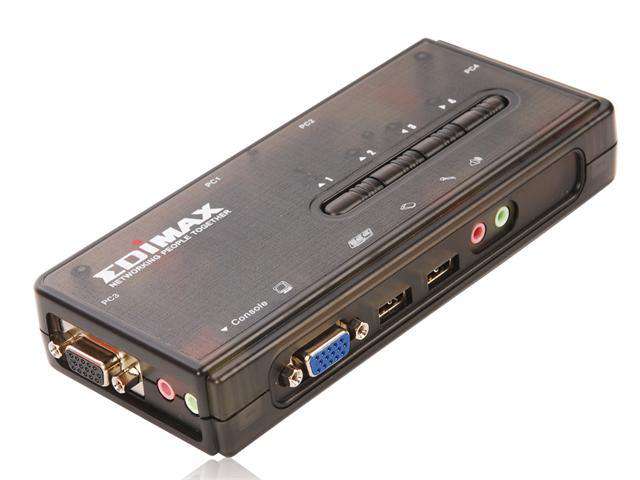

EDX EK-UAK4

SKU: EDX EK-UAK4

BRAND: Edimax


4 Port USB KVM Switch with (2048x1536 Max) Video Resolution, 350MHz Bandwidth, Plug and Play Functionality and USB Keyboard/Mouse Support

Overview

Features

  • Supports High Video Resolution up to 2048 x 1536.
  • Supports up to 350MHz Bandwidth.
  • Supports USB Keyboard and Mouse.
  • Supports Audio and Microphone Switching
  • Supports Auto Scan (Programmable).
  • Supports Hotkey and Push Button to Switch among PCs.
  • Supports Microsoft Intellimouse, Microsoft Optical Mouse, Microsoft Intellimouse explorer, Logitech Net Mouse…etc..
  • Supports Win98SE/XP/2000,Vista, Linux and Mac10.4 or higher
  • Hot Plug - Connect/Disconnect from PCs without powering down PCs.
  • PC selection via Push Buttons, Hotkeys (user definable) and Switching software
  • Restores Keyboard status when switching PCs
  • LED Display for easy status monitoring
  • Buzz sound for switching confirmation
  • No Power Adapter And Software Required
  • Includes KVM Cables to save your cost.

Specification

  • Max PC Connections : 4
  • PC Side Connection
    • 4 x HDB 15-pin female (integrated with USB)
    • 4 x 3.5mm audio jack
    • 4 x 3.5mm mic jack
  • Console Side Connection
    • 2 x USB Type A (Keyboard & Mouse)
    • 1 x HDB 15-pin female
    • 1 x Audio 3.5mm jack
    • 1 x Mic 3.5mm jack
  • PC Selection : Hot Keys / Push Buttons / Switching Software
  • PC Ports LED : 4
  • Connection Cables : 4 x detachable slim USB KVM Combo Cable
  • Audio Cables : 4 x Audio / Mic Cables
  • Scan Intervals : 10~60" (with an increment of 5”)
  • Max. Resolution : 2048 x 1536
  • Max. Bandwidth : 350MHz
  • Operation info : Temperature : 0~50 °C / Humidity : 0~90%, Non-Condensing
  • Weight (g) : 191.6g
  • Dimension : 164 x 72 x 26mm
