EF DRUID 18LCD-8J

SKU: EF DRUID 18LCD-8J

BRAND: Nemtek

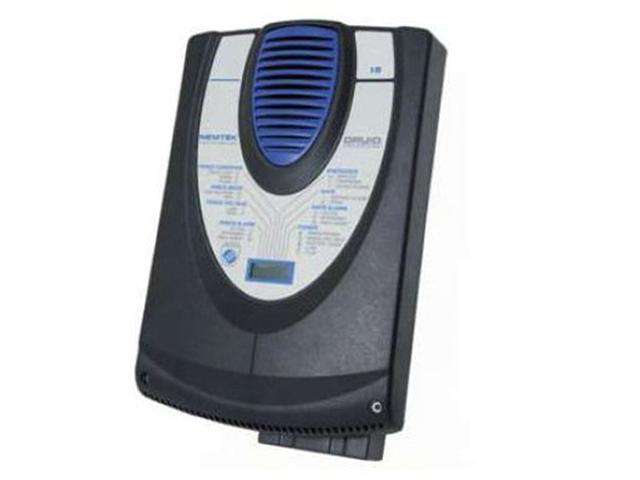

Energizer Druid 18 LCD 8 joules

Overview

The Druid 18 LCD is a powerful version of the Druid 15 LCD, boasting 7.2 output Joules into 500 Ohm load. This intelligent unit is the ideal choice for large series security fencing systems. It will maintain a high voltage on the fence by using Adapture Power Technology (APT ). APT will modify the pulse to maximise fence power into the fence by actively testing the fence. Fence characteristics are not always stable and change with time, weather and vegetation."

Features

  • LCD display
  • The background colours of the LCD display, give a quick glance indication of the energizer status
  • The Druid LCD range can accept up to two keypads to remotely control the energizer
  • Quick walk test mode on the system
  • High voltage monitor will alarm when the live wires are tampered with
  • Earth wire monitor alarms when there is tampering with the earth wires
  • Easy to use tag switch for controlling the unit if the keypad option is not used
  • Connectable to an armed response radio
  • Gate monitor
  • Lightning and power surge suppression built in
  • Internal battery backup system in case of power failure
  • Intelligent power saving to extend the battery life and save energy

Specification

High Voltage Outputs
  • Typical energy output into 500 ohms load (Joules) : 4.6J
  • Output voltage into an open circuit : 9000V
  • High or low voltage modes, alarm monitoring is enabled in both modes. output voltage settings can be changed for both the high and the low voltage modes : Yes
  • Number of high voltage monitored zones : 1
  • Number of earth loop monitored zones : 1
  • Adaptive power technology (APT), reducing false alarms and arcing on the fence : Yes
  • Fence Interference detection from foreign energizers : Yes
Energizer Controls and Displays
  • Keypads for the remote control of the energizer : 2 max
  • Tag switch – to control the energizer without using a keypad : Yes
  • Remote on/off input : Yes
  • Displays the output and return voltages : Yes
  • Display type : LED
Gate and Panic Button inputs
  • Timed gate switch input, used to monitor open and closing of the gate : Yes
  • Panic button input : Yes
Alarm outputs
  • Siren output, time programmable : Yes
  • Strobe light output to visually indicate an alarm condition : 1
Power supply and battery backup systems
  • Mains supply voltage : 230V
  • Typical power consumption under normal operating conditions : 18VA
  • Internal battery backup system in case of power failure, capacity of battery : 7 Ah
  • Typical standby time, with a fully charged battery : 24 Hours
  • Solar power panels can be connected to power the energizers, (recommend Watt size for 24 hr operation) : 60 Watts
  • Solar voltage regulator deep cycle battery size : 5 Amp
  • Recommended in amp hours (20 % discharge over a 24 hr cycle) : 60 Ah
Wire length per energizer (live wires in a series system) for both solid and stranded wires
  • Galvanised wires, 1.2mm
    • Optimal performance up to : 5 km
    • Maximum : 8 km
  • Galvanised wires, 2.0mm,2.24mm
    • Optimal performance up to : 5 km
    • Maximum : 12 km
  • Stainless Steel 1.0mm, 304 and316 grade
    • Optimal performance up to : 0.7 km
    • Maximum : 1 km
  • Stainless Steel 1.2mm, 304 and316 grade
    • Optimal performance up to : 0.8 km
    • Maximum : 1.1 km
  • Stainless Steel 1.6mm, 304 and316 grade
    • Optimal performance up to : 1.6 km
    • Maximum : 2.2 km
  • Stainless Steel 2.0mm, 304 and316 grade
    • Optimal performance up to : 2.4km
    • Maximum : 3.3 km
  • Aluminium Wire 1.6mm and2.0mm
    • Optimal performance up to : 10 km
    • Maximum : 20 km
  • Can be used in multi-energizer network system : No
  • IEC 60335-2-76 : Yes
  • CISPR 14, EN 61000 : Yes
  • Dimensions(mm) : 180x205x120
