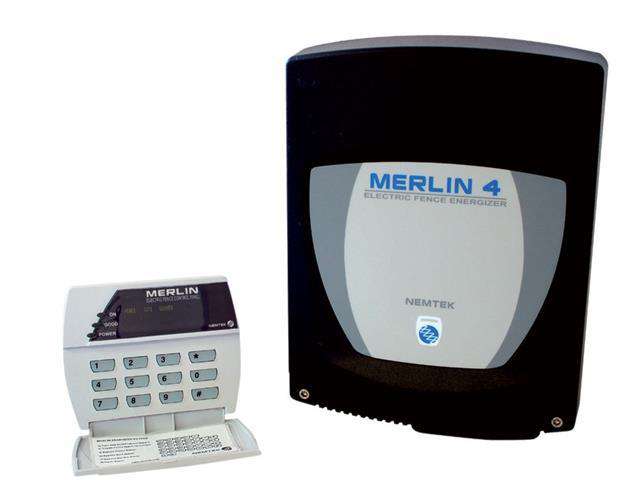

Merlin 4i with Keypad - Merlin 4i - 4J Energizer with Keypad {E-MER4I}
EF MERLIN 4I/KEYPAD
Overview
The Merlin 4i features a keypad for convenient control and programming of the energizer. The energizer can be installed close to the fence, while the keypad can be positioned in a location that is easily accessible to the user. This setup enables remote operation of the energizer and supports the connection of up to four keypads for added convenience and flexibility.
Features
7 Joule output energy (single zone)
Robust and flexible design for home and commercial security
Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
Connectable to armed response radio or GSM module
Lightning and power surge protection
Intelligent power-saving technology designed to extend battery life.
Powered by 230V mains and includes built-in battery for back-up power
Built-in gate alarm input for monitoring the gate’s open or closed status.
Gate chime available to provide an audible alert when the gate is opened or closed.
The fence voltage outputs can be adjusted using the keypad
The siren and gate outputs can be bypassed using the keypad
Specifications
Enclosure size
285(L) x 212(W) x 120(D)mm
Weight
3.1kg excluding battery (7AH) 5.3kg including battery (7AH)
IP rating
IPx4
Operating temperature
-10°C to 50°C
Operating humidity
< 80% non-condensing
Electrical supply voltage
240V
Typical power consumption
18VA (normal operating conditions)
Standby Time
24hrs (fully charged battery)
Energy output
3.7 Joule per zone (500 Ohms load)
Open circuit voltage
8000V
Secure your property with the EF Merlin 4I/Keypad, featuring a powerful 3.7 Joule output for robust home and commercial protection. Control your energizer remotely with up to four keypads, ensuring convenience and flexibility. With built-in tamper alarms and intelligent power-saving features, this energizer offers peace of mind and reliable security for any environment.
