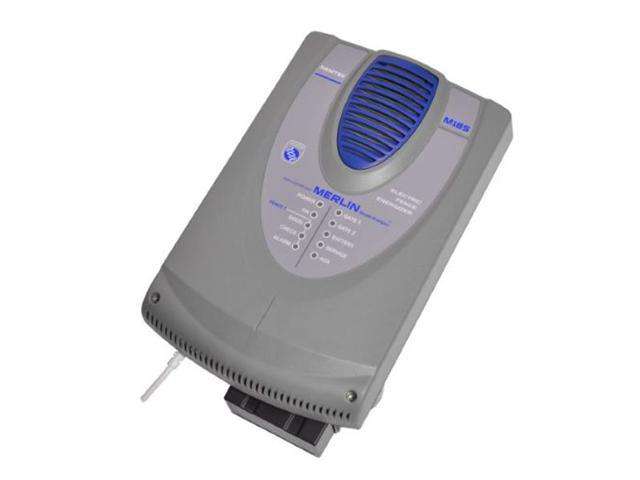

EF MERLIN-M18SV1

SKU: EF MERLIN-M18SV1

BRAND: Nemtek


Energizer Single Zone 8 joules

Overview

The Nemtek Merlin Stealth is a powerful range of energizers, that can be used as simple high end security energizers and can also be programmed to offer a customised solution

Features

  • Single zoned energizers, M18S is ideal for security application
  • High voltage monitor will alarm when the live wires are tampered with
  • Earth wire monitor alarms when there is tampering with the earth wires
  • Easy to use tag switch for controlling the unit with a keypad being optional
  • Connectable to armed response
  • Gate monitor input monitors the position of the gate to indicate if the gate is open
  • Lightning and power surge suppression built in to reduce the possibility of damage due to power surges
  • Battery backup system in case of power failure
  • Intelligent power saving to extend the battery life and save energy
  • RS 232 output, which can be used to connect the energizer into a networked system

Specification

High Voltage Outputs
  • Typical energy output into 500 ohms load (Joules) : 7.6J
  • Output voltage into an open circuit : 9300V
  • High or low voltage modes, alarm monitoring is enabled in both modes. output voltage settings can be changed for both the high and the low voltage modes : Yes
  • Number of high voltage monitored zones : 1
  • Number of earth loop monitored zones : 1
  • Adaptive power technology (APT), reducing false alarms and arcing on the fence : No
  • Fence Interference detection from foreign energizers : No
Energizer Controls and Displays
  • Keypads for the remote control of the energizer : 4 max
  • Tag switch – to control the energizer without using a keypad : Yes
  • Remote on/off input : Yes
  • Displays the output and return voltages : No
  • Display type : LED
Gate and Panic Button inputs
  • Timed gate switch input, used to monitor open and closing of the gate : Yes
  • Panic button input : Yes
Alarm outputs
  • Siren output, time programmable : Yes
  • Strobe light output to visually indicate an alarm condition : 1
Power supply and battery backup systems
  • Mains supply voltage : 230V
  • Typical power consumption under normal operating conditions : 27VA
  • Internal battery backup system in case of power failure, capacity of battery : 7 Ah
  • Typical standby time, with a fully charged battery : 8 hours
  • Solar power panels can be connected to power the energizers, (recommend Watt size for 24 hr operation) : 140 Watts
  • Solar voltage regulator deep cycle battery size : 10 Amp
  • Recommended in amp hours (20% discharge over a 24 hr cycle) : 150 Ah
Wire length per energizer (live wires in a series system) for both solid and stranded wires
  • Galvanised wires, 1.2mm
    • Optimal performance up to : 10km
    • Maximum : 25km
  • Galvanised wires, 2.0mm,2.24mm
    • Optimal performance up to : 20km
    • Maximum : 50km
  • Stainless Steel 1.0mm, 304 and316 grade
    • Optimal performance up to : 0.7km
    • Maximum : 1km
  • Stainless Steel 1.2mm, 304 and316 grade
    • Optimal performance up to : 1km
    • Maximum : 1.3km
  • Stainless Steel 1.6mm, 304 and316 grade
    • Optimal performance up to : 2km
    • Maximum : 2.6km
  • Stainless Steel 2.0mm, 304 and316 grade
    • Optimal performance up to : 3.3km
    • Maximum : 3.9km
  • Aluminium Wire 1.6mm and2.0mm
    • Optimal performance up to : 40km
    • Maximum : 80km
  • Can be used in multi-energizer network system : No
  • IEC 60335-2-76 : Yes
  • CISPR 14, EN 61000 : Yes
  • Dimensions (mm): 365x230x140

-->
