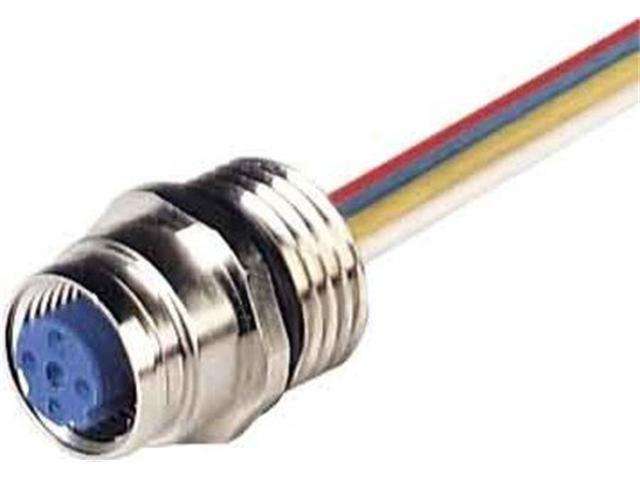

EF12M OCTOPUS - Circular Connectors -

EF12M OCTOPUS

SKU: EF12M OCTOPUS

BRAND: Hirschmann


In Stock
R 189.52 (inc VAT)
R 164.80 (ex VAT)

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

Industrial Ethernet M12 D-coded Female Circular Connector with 8cm Cable Pigtail

Overview

Features

Specification



  • Type of contact : Female
  • Number of contacts : 4
  • Data rate : 10BASE-T, 100BASE-TX
  • Cable gland : M16 x 1,5
  • Cable material : PVC
  • Cable length : 0,08 m
  • Conductor size : 0,34 0m² / AWG 22
  • Cable specification : 7 x 0,25 mm
  • Standard IEC : 61076-2-101
  • Housing Color : Metallic
Technical data
  • Wire stranding : 4 Litzen je 0,34 mm²
  • Rated voltage : AC/DC 250 V
  • Rated current : 4 A (Derating)
  • Type of termination : connection leads, length max. 8 cm
Material
  • Contact material : Cu Zn
  • Contact surface material : Au
  • Contact bearer material : PA
  • Housing material : Cu Zn / Ni
  • O-Ring : Viton
Environmental conditions
  • Protection class (IEC 60529) : IP67/IP65
  • Pollution severity : 3
  • Temperature range : -25ºC to 90ºC
Approvals
  • UL : UL

Additional Information

Brand Hirschmann
Gender Female
No. of Contacts 4
Colour Metallic
Series M12
Cable PVC
Degree of Protection IP65 | IP67
