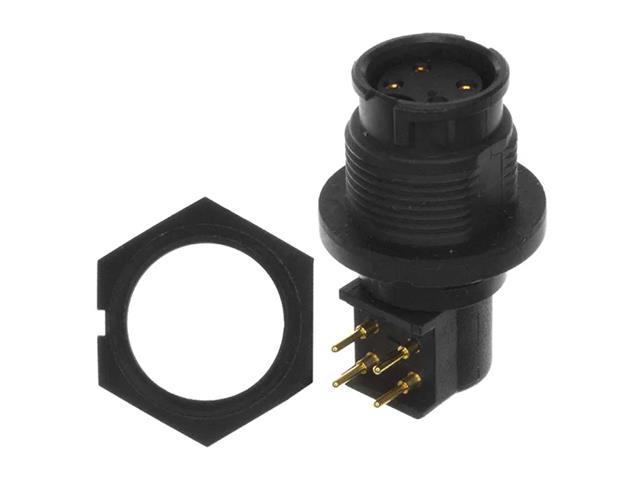

Panel Mount 4 Pin Female EN3 Connector with Right Angle PCB Contacts
Panel Mount 4 Pin Female EN3 Connector
Specifications
- Series : EN3®
- Packaging : Bulk
- Part Status : Active
- Connector Type : Receptacle, Female Sockets
- Number of Positions : 4
- Mounting Type : Panel Mount, Through Hole, Right Angle
- Mounting Feature : Bulkhead - Front Side Nut
- Termination : Solder
- Fastening Type : Bayonet Lock
- Orientation : Keyed
- Shell Material : Thermoplastic
- Contact Finish - Mating : Gold
- Color : Black
- Ingress Protection : IP66/68 - Dust Tight, Water Resistant, Waterproof
- Material Flammability Rating : UL94 V-0
- Shielding : Unshielded
- Current Rating (Amps) : 5A
- Voltage Rating : 250VAC/DC
- Operating Temperature : -40°C ~ 65°C
- Contact Material : Copper Alloy
- Insert Material : Elastomer
Additional Information
Device |
Connector |
Type |
Panel Mount | 4 Pin | Female | EN3 |
