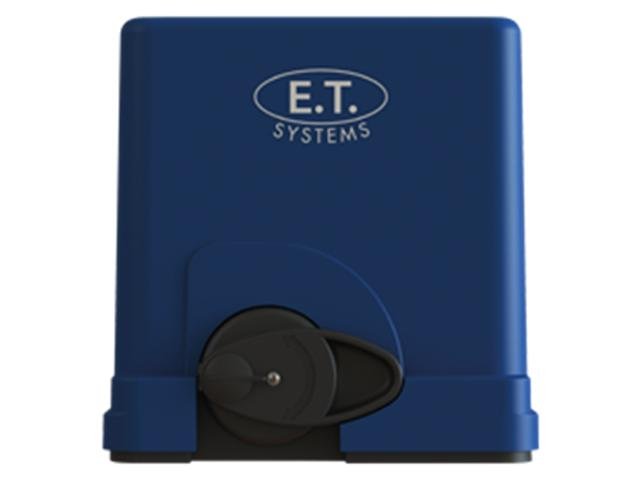

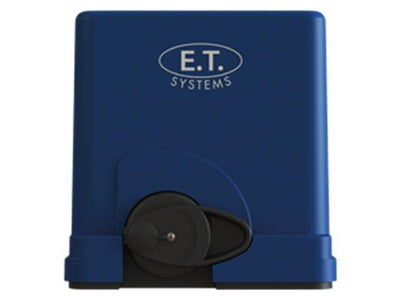

ET GATE MOTOR DRIVE ET300KIT

• Compact, robust design: Designed from the ground up to be compact BUT extremely tough and durable.
  • High speed, strong and durable electric motor with removable brushes for easy maintenance
  • Tried and tested drive-train proven to be exceptionally robust
  • UV resistant housing to endure long term exposure to harsh climates
  • Lockable single action manual release
  • Small footprint for installations where limited space is available
• Efficient, reliable operation: Operating more efficiently, saving power for when you need it most.
  • Intelligent energy management (as little as 1,5W power in standby), to maximise efficiency and extend battery operation time
  • Full battery backup in case of power failure
  • Intelligent battery charging for battery longevity
  • Battery low and mains failure warning
  • Solar power ready
• Intelligent electronics: The LED display and advanced but simple electronics, makes programming and diagnostics a breeze while giving you all the functionality you need.

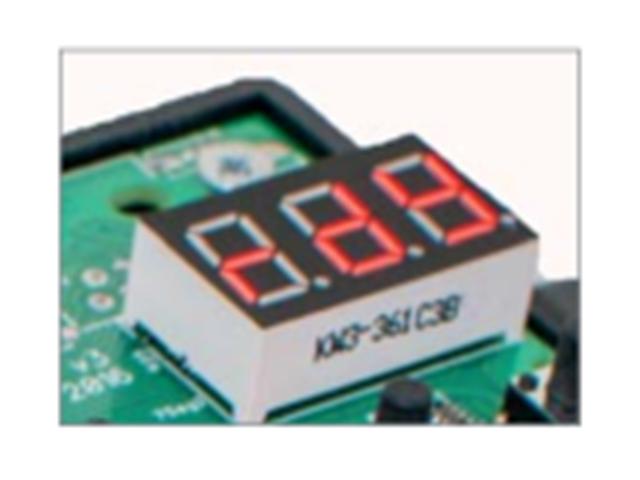

  • LED display for ease of programming and diagnostics
  • Quick access shortcut for adding ET Blu Mix ® remotes
  • Individually add and remove remote control users and functions
  • Quick and simple run-time setup
  • “Drive series” intelligent gate profiling, monitoring and collision detection
  • Self-resetting overload protection on outputs
  • Various operating modes with customizable parameters, e.g. slow-down distance, auto close times, pedestrian distance, etc.
  • Permanently monitored safety beam circuit
  • Remote status indicator
• Excellent security features: Taking cognisance of the ever increasing security demands, numerous advanced security features are incorporated in the Drive 300.
• Gate forced open alarm monitoring
• Safety beam tamper detection
• RF jamming and signal strength tester, transmitter identification
• ET Blu Mix ® enhanced rolling code receiver – “The most secure code in Africa” – 32 user memory x 4 functions each
• Positive close and electronically locking features
• Auxiliary relay output for can be selected to operate mag lock, strike lock, lights etc.

• Input Voltage: (Standard kit option) : 230V AC, 50Hz-60Hz
• Primary Supply to the Electric Motor : Battery Dependent (24V 3,5Ah)
• Maximum Duty Cycle with Mains present : 25%
• Number of operations on battery reserve without AC mains present : 100 within the first 24h of power failure
• Maximum Gate Mass : 300kg
• Maximum gate leaf length : 25m
• Rated Running Load : 100N
• Rated Gate Speed : 25m/mint
• Built-in Receiver :
• 434MHz, 4 channel, ET BLU MIX® Enhanced rolling code. 32 user capacity
