MyNice SmartGo WiFi Module with bluetooth and WiFi connectivity, 5 to 24V DC @ 40mA (Nominal), 2 x Inputs, 2 x Outputs, 2.4 GHz Wi-Fi and Bluetooth LE, Compatible: Android, Huawei, iOS, 47mm x 18mm x 32mm

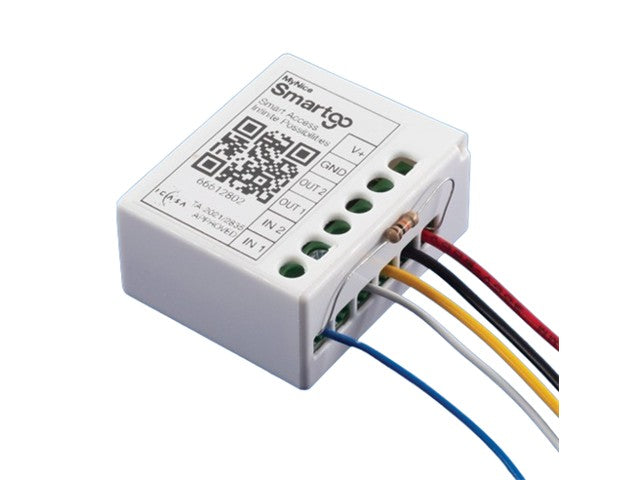

MyNice SmartGo WiFi Module
Overview
The MyNice SmartGo WIFI Module is a compact, plug-in device designed to upgrade Nice access automation products (gates/garage doors) with Wi-Fi and Bluetooth connectivity. It enables remote control, real-time alerts, and multi-user management via the MyNice App, allowing secure smartphone access from anywhere.
Features
-
Dual Wi-Fi & Bluetooth LE Connectivity: Ensures reliable access. Use Wi-Fi for control from anywhere in the world, and Bluetooth for direct access when you are in close proximity, even if your internet connection is down.
-
Universal Compatibility: Designed to be a versatile upgrade, it can be connected to Nice operators and is also compatible with a wide range of other access automation brands.
-
Two Independent Control Outputs: Features two configurable outputs (OUT1, OUT2) that act as normally open (N/O) negative pulse triggers, allowing you to control two separate devices, such as a gate and a pedestrian opening.
-
Two Sensor/Trigger Inputs: Equipped with two inputs (IN 1, IN 2) that can be used to connect sensors (like gate status sensors) for real-time feedback and notifications.
-
Advanced User Management: The app allows you to add an unlimited number of users (subject to subscription), grant specific permissions, share access securely, and view detailed access logs.
-
Free Subscription Tier: The standard subscription is completely free for up to 10 users, making it an exceptionally affordable solution for most households.
-
Real-Time Status Notifications*: Receive push notifications on your phone for device status and alarms, such as when a gate is opened, closed, or left open. (*Feature only available if connected to selected Nice products).
-
Compact Physical Dimensions: With a tiny footprint of just 47mm x 18mm x 32mm, the module is small enough to be installed discreetly within the housing of most gate and garage door motors.
-
Wide Operating Voltage: A flexible power supply requirement of 5 to 24V DC allows it to be powered directly from the auxiliary power output of most automation controllers.
Specifications
|
Specification
|
Detail
|
|
Product Name
|
MyNice SmartGo WiFi Module
|
|
Brand
|
MyNice
|
|
Power Supply (V+)
|
5 to 24V DC @ 40mA (Nominal)
|
|
Number of Inputs
|
2 (IN 1, IN 2)
|
|
Input Voltage
|
0 to V+
|
|
Number of Outputs
|
2 (OUT1, OUT2)
|
|
Output Behaviour
|
Negative Pulse (As per Normally Open contact)
|
|
Output Current Limit
|
500mA per output
|
|
Connectivity Technology
|
Bluetooth LE and 2.4Ghz Wi-Fi
|
|
Physical Dimensions
|
47mm x 18mm x 32mm
|
|
Operating Temperature
|
-10°C to 50°C
|
|
Compatible Mobile OS
|
Android, Huawei, iOS
|
|
App Availability
|
Apple App Store, Google Play, Huawei AppGallery
|
Downloads
Additional Information
Upgrade your access automation with the MyNice SmartGo WiFi Module. This compact device offers seamless Wi-Fi and Bluetooth connectivity, enabling remote control and real-time notifications via the MyNice App. Enjoy enhanced security and multi-user management for your gates and garage doors, all from your smartphone, regardless of your location. Unlock convenience today with this must-have smart home accessory!
