2 M M12 A-coded Female Socket Connection Cable (4-PIN) With Pur Jacket And Stainless-steel Coupling Nut, Rated Ip67/Ip68, 24 V DC.
2 M M12 A-coded Female Socket Connection Cable
Specifications
- Product Type: Connecting Cable with Socket
- Manufacturer Part Number: ADOAH040MSS0002H04

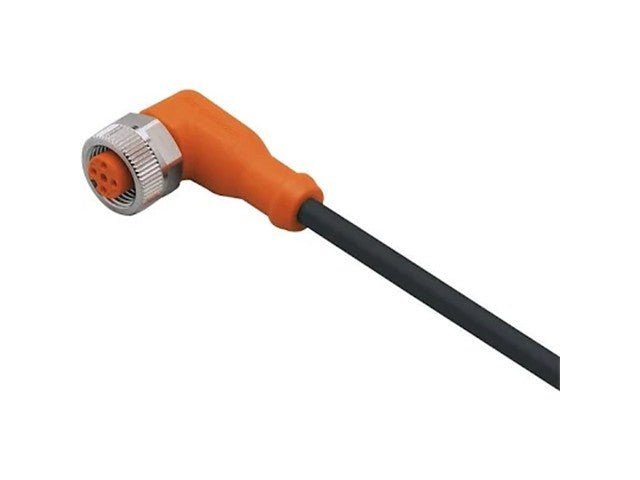

- Connector Type: M12 female socket, angled
- Connector Coding: A-coded
- Number of Contacts: 4
- Cable Length: 2 m
- Cable Material: Polyurethane (PUR)
- Cable Colour: Black
- Cable Diameter: 4.3 mm
- Conductor Cross-Section: 4 × 0.34 mm²
- Operating Voltage: Less than 250 V AC / less than 300 V DC
- Maximum Current: 4 A
- Protection Class: II
- Protection Rating: IP65, IP67, IP68, IP69K
- Contact Material: Gold-plated
- Connector Housing: Orange TPU
- Locking Nut: Nickel-plated brass
- Sealing Material: FKM
- Operating Temperature: -25 °C to +90 °C
- Operating Temperature (cULus): Up to +75 °C
- Drag-Chain Suitable: Yes
- Bending Cycles: More than 5 million
- Minimum Bending Radius: 10 × cable diameter
- Maximum Travel Speed: 3.3 m/s under specified test conditions
- Torsional Strain: ±180°/m
- Dimensions (W × D × H): 26.5 × 15.5 × 36.5 mm
- Weight: 76.1 g
- Special Features: Silicone-free, halogen-free, oil- and coolant-resistant
- Applications: Industrial automation, machine tools, and sensor/actuator connections
Downloads
Additional Information
| Device |
Cable |
| Type |
2 M M12 | A-coded | Female | Socket | Connection | Cable |
Elevate your industrial automation with the EVC004 IFM 2M M12 A-coded Female Socket Connection Cable. Engineered for durability with an IP67/IP68 rating, this robust cable features a PUR jacket and stainless-steel coupling nut, ensuring reliable performance in harsh environments. Perfect for sensor and actuator connections, it supports a maximum current of 4A, making it an essential component for efficient machinery operation.
