Main

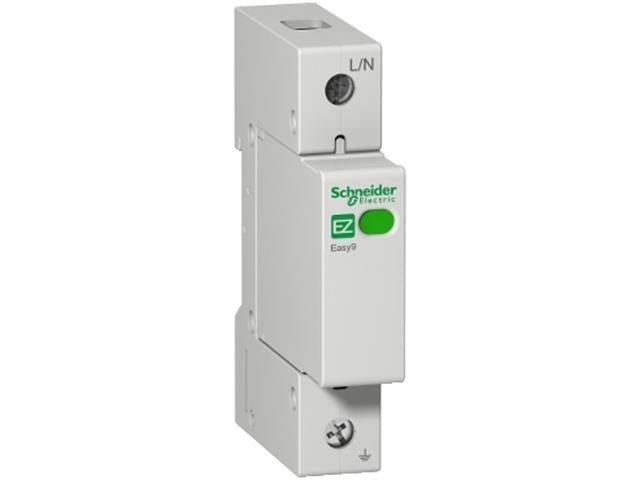

• Range of product : Easy9
• Product or component type : Surge arrester
• Device short name : Easy9 SPD
• Poles : 1P
• Remote signalling : Without
• Surge arrester type : Electrical distribution network
• Earthing system TT, TN
• Disconnector device type : Associated circuit breaker at 230 V

Complementary

• Surge arrester class type : Type 2
• Surge arrester technology : MOV
• Nominal discharge current
  • Common mode: 10 kA (L/PE)
  • Common mode: 10 kA (N/PE)
• Maximum discharge current
  • Common mode: 20 kA L/PE
  • Common mode: 20 kA N/PE
• [Uc] maximum continuous operating voltage
  • Common mode: 275 V L/PE
  • Common mode: 275 V N/PE
• Maximum [Up] voltage protection level : Common mode <1.3 kV type 2 L/PE
• Local signalling : Green and red flag
• Mounting mode : Clip-on
• Mounting support : DIN rail
• 9 mm pitches : 2
• Height : 90 mm
• Width : 18 mm
• Depth : 66.2 mm
• Colour : Grey (RAL 7035)
• Response time : <= 25 ns

1. Datasheet - EZ9L33120
