| Light Parameters |
| Lamp |
1 |
| LED |
SMD LED |
| Brightness |
780LM(+/-10%), Adjustable brightness |
| Color Temperature |
3000K-5700K, Adjustable color temperature |
| Light Angle |
Horizon 180°, Vertical 140° |
| Open Light Method |
Manually, schedule, human-shape detection, vehicle-shape detection |
| Ingress Protection Grade |
Weatherproof design |
| Camera Parameters |
| Max. Resolution |
3MP(2048*1536) |
| Camera Viewing Angle |
130° (Diagonal), 99° (Horizontal), 71° (Vertical) |
| IR Range |
Max. 15m |
| Ingress Protection Grade |
IP65 |
| Video Parameters |
| Compression Standard |
H.264 / H.265 |
| Frame Rate |
Max. 25 fps, self-adaptive during network transmission |
| DNR |
3D DNR |
| WDR |
Supports |
| Audio Parameters |
| Audio Input |
Built-in Omni-direction microphone |
| Audio Output |
Built-in loudspeaker |
| Audio Quality |
Noise suppression |
| Function |
| Smart Alarm |
AI Human Detection , Vehicle Detection ,Vehicle license plate recognition |
| Dual-antennas |
Supports |
| Two-way Talk |
Supports |
| General Function |
Anti-flicker, dual-stream, heart beat, password protection, watermark |
| Network Parameters |
| Wireless |
2.4GHz and 5GHz Wi-Fi 6 |
| Network Configuration |
BT Pairing and AP Pairing |
| Storage |
| Local Storage |
Supports microSD card (Up to 512 GB) |
| Cloud Storage |
EZVIZ Cloud Storage* |
| General |
| Working Temperature |
-30°C to 50°C (-20°F to 120°F), humidity 95% or less (non-condensing) |
| Power |
100V-240V |
| Power Consumption |
25W |

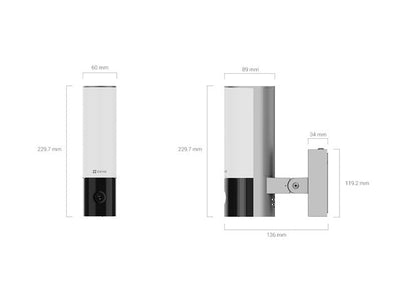

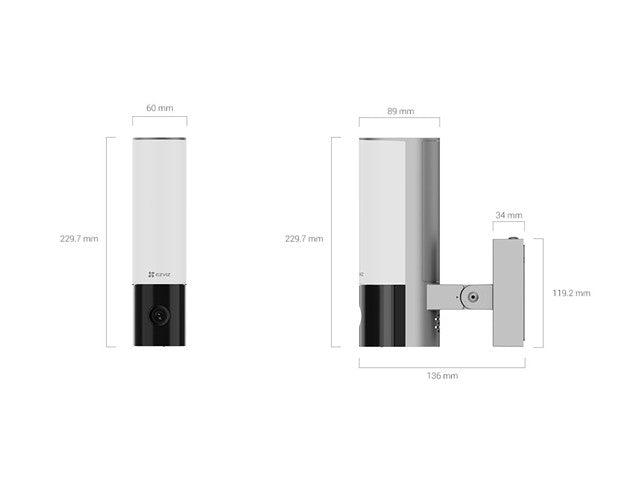

| Product Dimensions |
60 × 136 × 229.7 mm |
| Package Dimensions |
310 × 226 × 83 mm |
| Net Weight |
1.74KG (with package) |
| Work with |
Google Assistant, Amazon Alexa |
| Light Source Replacement |
Shall only be replaced by the manufacturer or service agent or a similar qualified person |
| Recommended Power Cable |
H05RN-F(3x1.0mm²) |
| In the box |
| In the box |
- EL3 Security Camera |
| - Drill Template |
| - L-Shaped Wrench |
| - Wall Bracket |
| - Bracket Screw |
| - Buckle |
| - Screw Kit |
| - Regulatory Information |
| - Quick Start Guide |
