Model
|

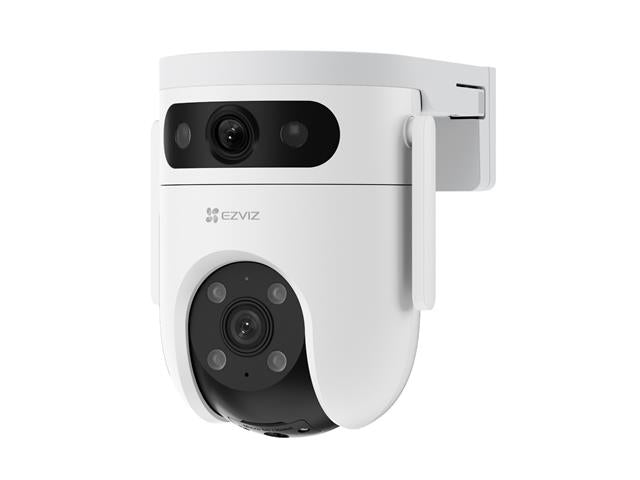

CS-H9c-R100-8H33WKFL
|
|
Camera
|
|
Image Sensor
|
1/2.7" Progressive Scan CMOS
|
|
Shutter Speed
|
Self-adaptive shutter
|
|
Lens
|

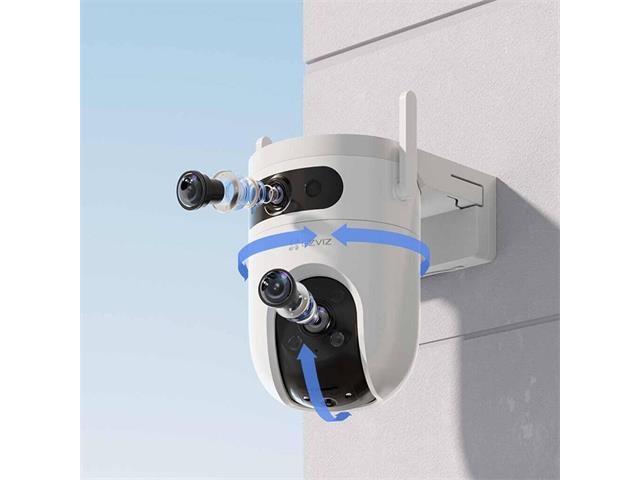

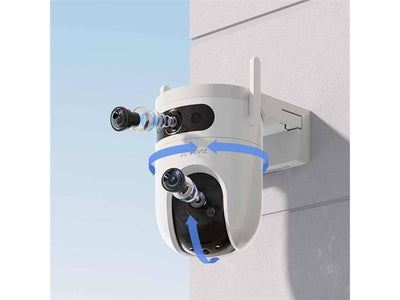

Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
|
|
PT Angle
|
Pan: 350°, Tilt: 80°
|
|
Minimum Illumination
|
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
|
|
Lens Mount
|
M12
|
|
Day & Night
|
IR-cut filter with auto-switching
|
|
DNR
|
3D DNR
|
|
WDR
|
Digital WDR
|
|
Black & White Night
|
30m / 98ft
|
|
Video & Audio
|
|
Max Resolution
|
2304 × 1296
|
|
Frame Rate
|
Max:15fps; Self-Adaptive during network transmission
|
|
Video Compression
|
H.265 / H.264
|
|
H.265 Type
|
Main Profile
|
|
Video Bit Rate
|
Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
|
|
Audio Bit Rate
|
Self-Adaptive
|
|
Network
|
|
Wi-Fi Standard
|
IEEE802.11b, 802.11g, 802.11n
|
|
Frequency Range
|
2.4 GHz ~ 2.4835 GHz
|
|
Channel Bandwidth
|
Supports 20MHz
|
|
Transmission Rate
|
11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
|
|
Wi-Fi Pairing
|
AP paring
|
|
Protocol
|
EZVIZ cloud proprietary protocol
|
|
Interface Protocol
|
EZVIZ cloud proprietary protocol
|
|
Wired Network
|
RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
|
|
Security
|
WPA-PSK/WPA2-PSK
|
|
Functions
|
|
Smart Alarm
|
AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
|
|
Auto Tracking
|
Supports
|
|
Customized Alert Area
|
Supports
|
|
Two-way Talk
|
Supports
|
|
Preset Locations
|
Supports
|
|
General Function
|
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
|
|
Storage
|
|
Local Storage
|
Supports microSD Card (Up to 512 GB)
|
|
Cloud Storage
|
Supports EZVIZ CloudPlay storage
|
|
General
|
|
Operating Conditions
|
-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
|
|
IP Grade
|
Weatherproof Design
|
|
Power Supply
|
DC 12V/1.5A
|
|
Power Consumption
|
MAX. 12W
|
|
Dimensions
|
145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
|
|
Packaging Dimensions
|
150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)
|
|
Weight
|
Net Weight: 668 g With Package: 960 g
|
|
In the box
|
|
In the box
|
- H9c Camera
|
|
- Drill Template
|
|
- Screw Kit
|
|
- Waterproof Kit
|
|
- Power Adapter
|
|
- Regulatory Information
|
|
- Quick Start Guide
|
