| Specifications |
| Model |

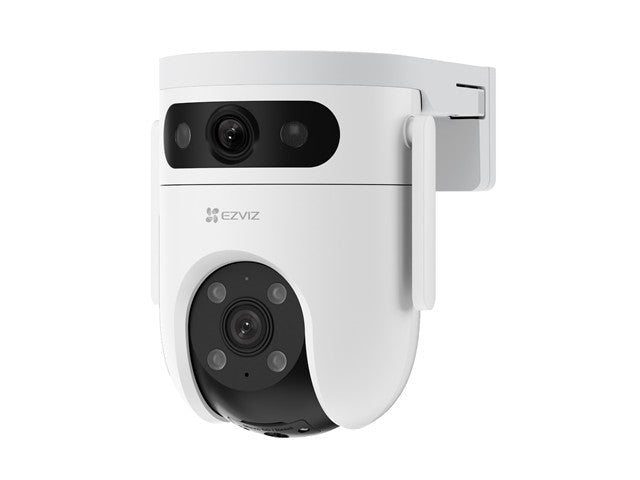

CS-H9c-R105-8H55WFL |
| Camera |
| Image Sensor |
1/3” Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
Top lens: 2.8 mm @ F1.6, viewing angle: diagonal 110°, horizontal 96°, vertical 54°;
Bottom lens: 6 mm @ F1.6, viewing angle: diagonal 60°, horizontal 52°, vertical 28°
|
| PT Angle |
Pan: 350°, Tilt: 80° |
| Minimum Illumination |
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Black & White Night |
30m / 98ft |
| Video & Audio |
| Max Resolution |
3K (2880 × 1620) |
| Frame Rate |
Self-adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| H.265 Type |
Main Profile |
| Video Bit Rate |
Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Network |

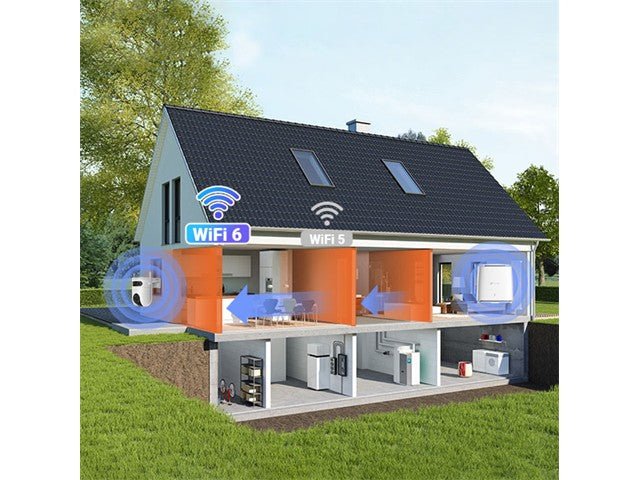

| Wi-Fi Standard |
IEEE802.11a, 802.11b, 802.11g,802. 11n,802.11ac,802.11ax |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz, 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz |
| Channel Bandwidth |
Supports 20 MHz @ 2.4G, Supports 20 / 40 / 80 MHz @ 5G |
| Security |
WPA-PSK/WPA2-PSK |
| Transmission Rate |
1b: 11 Mbps, 11a/g: 54 Mbps, 11n: 150 Mbps, 11ac: 433 Mbps, 11ax: 600 Mbps |
| Wi-Fi Pairing |
AP paring |
| Protocol |
EZVIZ cloud proprietary protocol |
| Interface Protocol |
EZVIZ cloud proprietary protocol |
| Wired Network |
RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions |
| Smart Alarm |

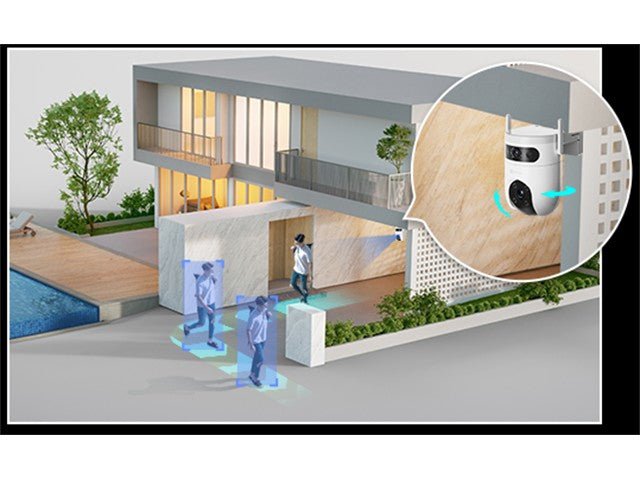

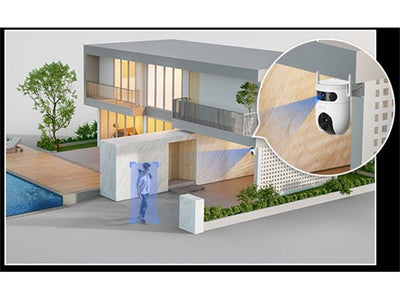

AI-powered human shape detection; AI-powered vehicle shape detection; Motion detection |
| Auto Tracking |
Supports |
| Customized Alert Area |
Supports |
| Two-way Talk |
Supports |
| Preset Locations |
Supports |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage |
| Local Storage |
Supports microSD card (Max. 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay Storage (Subscription required) |
| General |
| Operating Conditions |
-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade |
Weatherproof Design |
| Power Supply |
DC 12V/1.5A |
| Power Consumption |
Max. 18 W |

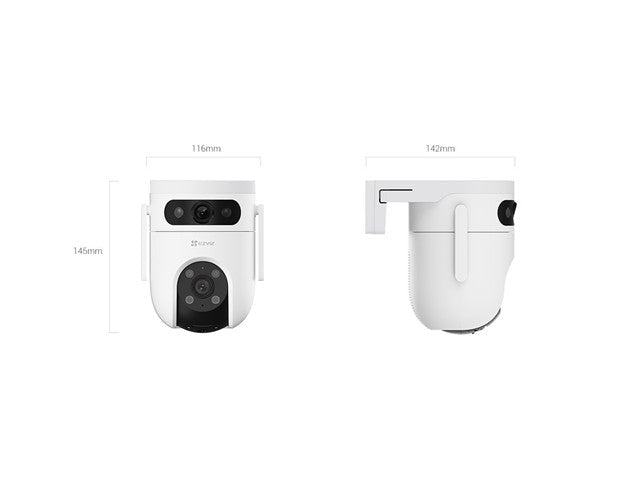

| Dimensions |
147 × 116 × 142 mm (5.71 × 4.57 × 5.59 inch) |
| Packaging Dimensions |
150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
| Weight |
Net weight: 633 g (22.33 oz) With package: 974 g (34.36 oz) |
| In the box |
| In the box |
- H9c Dual 3K Camera |
| - Drill Template |
| - Screw Kit |
| - Waterproof Kit |
| - Power Adapter |
| - Regulatory Information × 2 |
| - Quick Start Guide |
