| Image Sensor |
1/2.8” 4-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 122°, Horizontal 105°, Vertical 58° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 65°, Horizontal 56°, Vertical 30° |

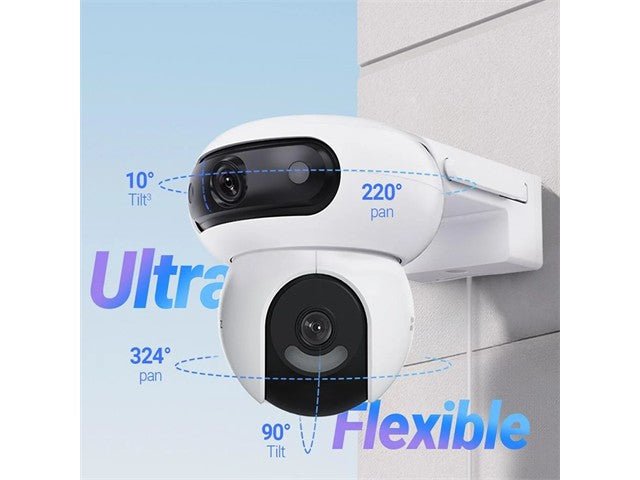

| PT Angle |
Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90° |
| Minimum Illumination |
0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories) |
| Day & Night |
IR-cut filter with auto switch |
| DNR |
3D DNR |
| Night Vision Distance |
35 m (When two lenses point in the same direction) |
| Video & Audio |
| Max Resolution |
2K+ (2K+ (2560 × 1440)) |
| Frame Rate |
Max. 15fps; Self-adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Quad HD; HD; Standard; Adaptive bit rate |
| Audio Bit Rate |
Self-adaptive |
| Max. Bitrate |
2 Mbps (Total) |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n , 802.11ax |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Support 20MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g :54Mbps, 11n :72Mps, 11ax: 114Mbps |
| Wi-Fi Pairing |
AP pairing |
| Minimum Network Requirement |
4 Mbps |
| Bluetooth |
Supports |
| Frequency Bands |
IN LTE-FDD: B1/B3/B5/B8, IN LTE-TDD: B34/B38/B39/B40/B41, EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28, LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 |
| Function |
| Smart Alarm |
AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection |
| Auto Tracking |
Supports |
| Customized Alert Area |
Supports |
| Two-Way Talk |
Supports |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage |
| Local Storage |
Supports microSD card (max. 512 GB) |
| Cloud Storage |
EZVIZ CloudPlay storage (subscription required) |
| General |
| Operating Conditions |
-20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing) |
| Battery Capacity |
10,400 mAh |
| IP Grade |
IP65 |
| Power Supply |
DC 5 V / 2 A (Adapter needs to be purchased separately) |
| Power Consumption |
Max. 10 W |
| Dimensions |
135 × 145 × 229.5 mm (5.32 × 5.71 × 9.04 inch) |
| Packaging Dimensions |
300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch) |
| Weight |
Net weight for CB90x: 862g, Net weight for Solar Panel 8W: 428g, With package: 1902g |
| Specifications |
| Model |
CS-PSP8-R100-3M |
| Performance Parameter |
| Power Voltage |
5.4 V ± 5% |
| Power Current |
1.48 A ± 5% |
| Open Circuit Voltage |
6.8 V ± 5% |
| Short Circuit Current |
1.64 A ± 5% |
| Max. Power |
8 W ± 5% |
| Interface |
Type-C |
| Solar Cell Efficiency |
≥22% |
| Operating Conditions |
-20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
| IP Grade |
IP65 |
| Mechanical Data |
| Solar Cell Type |
Monocrystalline solar cells |
| Power Cable Length |
3 meter |
| Product Dimensions |
267.3 × 186.5 × 17.5 mm |
| Weight |
428 g |
| In the box |
| In the box |

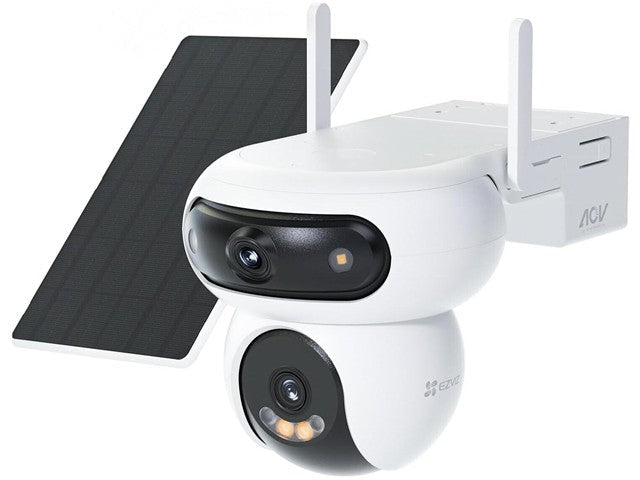

- HB90x Dual 4G Camera |
| - Solar Panel 8W |
| - Drilling Template |
| - Adjustable Mounting Bracket |
| - Screw Kit × 2 |
| - Power Cable |
| - Regulatory Information × 4 |
| - Quick Start Guide × 2 |
| Certifications |
| Certifications |
CE / REACH / WEEE / RoHS |
