EZVIZ CS-HG2-600-PRO-KIT - Access Automation - 6941545639376

EZVIZ CS-HG2-600-PRO-KIT

Name: EZVIZ CS-HG2-600-PRO-KIT - Communica [Part No: EZVIZ CS-HG2-600-PRO-KIT]
Brand: Ezviz
SKU: EZVIZ CS-HG2-600-PRO-KIT
Price: 5216.53 ZAR
Availability: InStock

SKU: EZVIZ CS-HG2-600-PRO-KIT

BRAND: Ezviz

R 5,999.01_{(inc VAT)}
R 5,216.53_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Security, Access Control & Surveillance, Weight 10+

Type: Access Automation

Category: Gate Motors and Accessories

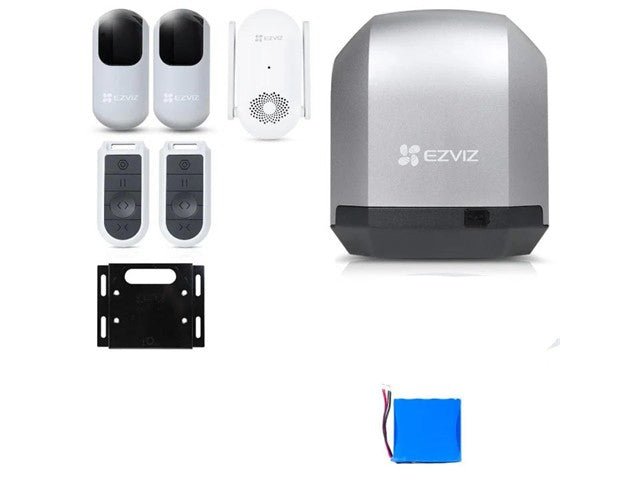

EZVIZ Smart Sliding Gate Motor 600KG 24VDC with Backup Battery Pack (Includes: 1 x Gate Motor - 2 x Smart Beams TX/RX (MAX10M) - 2 x Remotes - 1 x Base Plate - 1 x Backup Battery Pack - 1 x WiFi Halo Repeater WiFi 6) Excludes Racks & Alarm Light Camera

Smart Sliding Gate Motor

Specifications

Gate Opener Motor
Power Supply	24V DC
Input Power	230V AC, 50Hz (primary); 14.6V DC (backup battery)
Maximum Power	250 W
Rated Operating Time	15 minutes
Lock Power Output	12V DC, 1.5A
Photocell Input	up to 2 pairs, non-polarized
Continuous Open / Stop / Close Input	Normally open dry contact, supports multiple inputs
Open Input	Normally open dry contact, supports multiple inputs
Stop Input	Normally closed dry contact by default, configurable to normally open via app
Alarm Light / Camera Output	10–18V DC, 700 mA
Light Output	230V AC, Max. 100 W
Operating Conditions	-30°C to +60°C, ≤95% RH (non-condensing)
Size	249 (L) × 221 (W) × 244 (H) mm
Weight	7000 g (gate opener body)
Protection Rating	IP55
Remote Controllers	Supports up to 8
Alarm Light Camera
Resolution	2K (2048 × 1536)
Day & Night	IR-cut filter with automatic switching
Connection Method	Wired connection with gate opener (2-wire), digital signal transmission
Intelligent Alarm	Smart human motion detection and loitering detection
Operation Conditions	-30°C to 55°C , Humidity 95% or less (non-condensing)
Protection Rating	IPX5
Wi-Fi HaLow Repeater
Power Supply	AC 110–240V
Wi-Fi Standard	Wi-Fi : IEEE 802.11b/g/a/n/ac Wi-Fi HaLow: IEEE 802.11ah
Wi-Fi Bands	2.4GHz / 5GHz
Photocells
Content in a Pair	1 TX transmitter and 1 RX receiver
Power Supply	12V DC
Maximum Rated Power	0.8W (TX & RX combined)
Input	1 normally closed dry contact output 1 normally open dry contact output
Distance	up to 10 meters
Operating Conditions	-30°C to 60°C, ≤95% RH (non-condensing)
Protection Rating	IP55
Power Consumption	Max. 10 W

Downloads

Datasheet - EZVIZ CS-HG2-600-PRO-KIT

Additional Information

Device

Gate Motor

Elevate your home's security with the EZVIZ CS-HG2-600-PRO-KIT Smart Sliding Gate Motor. This powerful 600KG motor features a backup battery and smart technology, ensuring reliable access control and peace of mind. With easy installation and remote access, enjoy seamless operation and enhanced safety for your property. Perfect for any home or business, this gate motor combines innovation with convenience.
