FANDC012040-10VB

SKU: FANDC012040-10VB

BRAND: Sunon

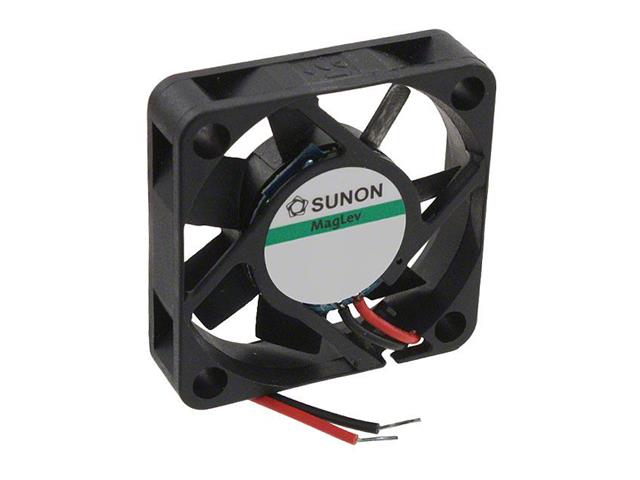

Fan 40X40x10mm 12VDC Vapo Bearing AF=8.0 (CFM) 7000RPM 51MA 0.62W 27.3DBA 2 Wire

Fan 40X40x10mm

Specifications

  • Rated Voltage : 12 VDC
  • Rated Current : 51 mA / Max. 59 mA
  • Rated Speed : 7000 RPM ± 15% at rated voltage
  • Air Flow : 8.0 CFM
  • Acoustic Noise : 27.3 dB(A)
  • Rated Power Consumption : 0.62 Watts / Max. 0.71 Watts
  • Safety Power Consumption : 0.72 WATTS
  • Operating Voltage Range : 4.5~13.8 VDC
  • Starting Voltage : 4.5 VDC (25 deg. C Power ON/OFF)
  • Operating Temperature Range : -10 to + 70 deg. C
  • Storage Temperature Range : -40 to + 70 deg. C

Downloads

Additional Information

Device Fan
Type Vapo Bearing | 2 Wire
