FANDC024060-15V

SKU: FANDC024060-15V

BRAND: Sunon

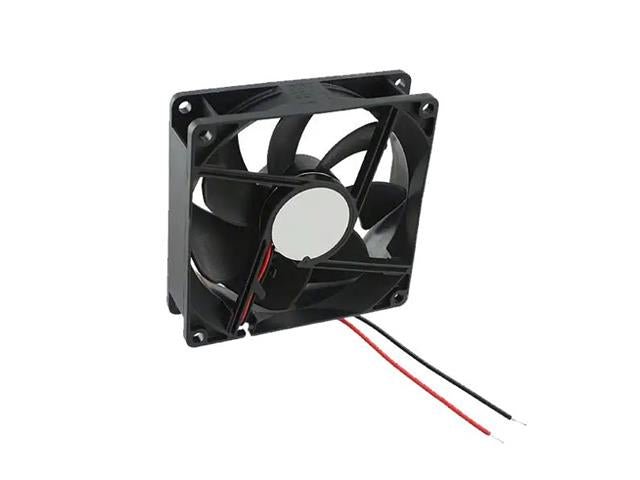

Fan 60x60x15mm 24VDC Vapo Bearing AF=26.4(CFM) 4700RPM 87mA 34.2dBA Sunon

24VDC DC Fan

Specifications

1. Mechanical Characteristic

  • Motor Design Single phase, 4-poles Brushless DC motor
  • Bearing System Precise Vapo bearing system
  • Dimensions : 60x60x15mm
  • Materials of Frame Thermoplastic PBT of UL 94V-0
  • Materials of Fan Blade Thermoplastic PBT of UL 94V-0
  • Direction Of Rotation Counter-clockwise viewed from front of fan blade
  • Mounting Holes Diameter 4.3 mm in 8 holes
  • Weight 45 g

2. Electric Characteristic

  • Rated Voltage 24 VDC
  • Rated Current 87 mA
  • Operating Temperature Range -10 to + 70 deg. C
  • Storage Temperature Range -40 to + 70 deg. C

3. Performance Characteristic

  • Rated Speed 4700 RPM ± 15% at rated voltage
  • Air Flow 26.4 CFM
  • Static Pressure 0.21 Inch-H2O
  • Acoustic Noise 34.2 dB(A)

Downloads

Additional Information

Device Fan
Type DC
