Screw-on version from front or rear side, snap-in version from front
Plug removal necessary for fuse-link replacement
The fuse drawer “Fingergrip” can be removed by hand
The fuse holder is accessible from the equipment front
Terminals quick connect 4.8 x 0.8 mm
Specifications
Filter Type: Filtered (EMI, RFI) – Commercial
Manufacturer:SCHURTER Inc.
Series: KFA
Current Rating (Filter): 4 A
Current Rating (Appliance Inlet): 4 A
Voltage Rating (Appliance Inlet): 250 VAC
Connector Style: IEC 320-C14
Connector Type: Receptacle, Male Blades – Module
Number of Positions: 3
Mounting Type: Panel Mount, Flange
Termination: Quick Connect – 0.250 in (6.3 mm)
Fuse Accommodation: Yes (fuse not included)
Fuse Holder / Drawer: Drawer sold separately
Panel Cutout Dimensions: Rectangular – 29.00 mm × 33.00 mm
Ingress Protection Rating: IP40
Material Flammability Rating: UL94 V-0
Approval Agencies: CCC, cULus, ENEC
Additional Information
Device
Fuse Holder

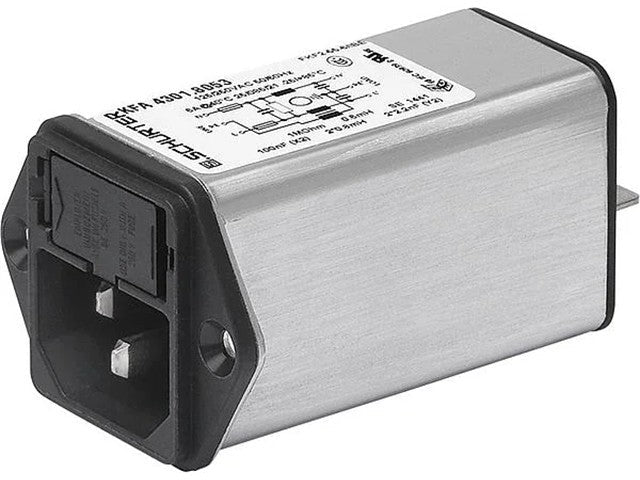

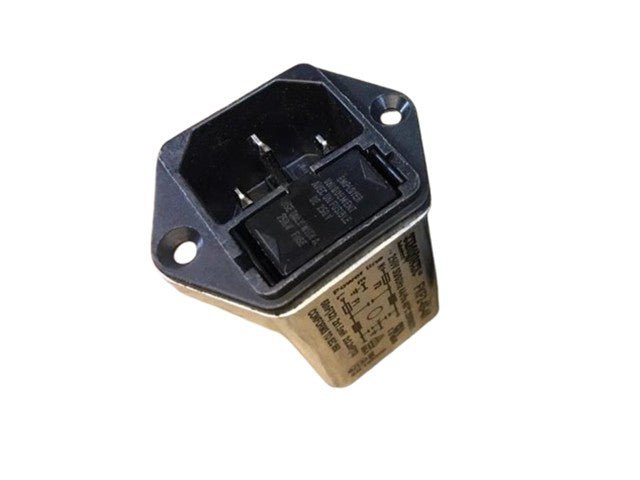

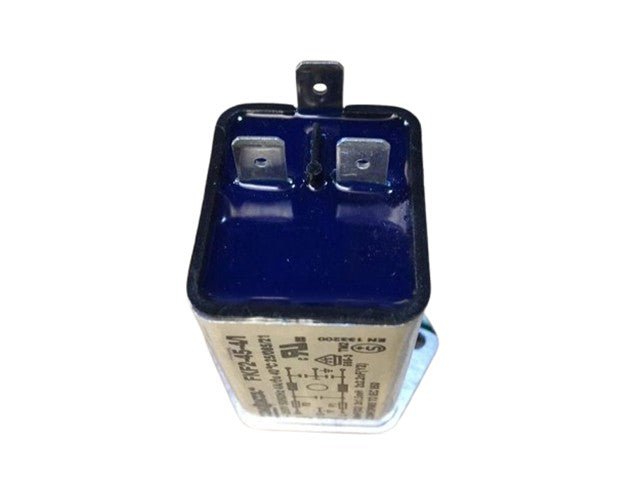

Enhance your equipment's safety with the FKF2-45-4/I 4A 250V Filter 2-Pole Fuse Holder. Designed for easy access and quick connections, this reliable fuse holder protects against EMI and RFI, ensuring optimal performance. Its user-friendly design allows for hassle-free fuse replacement, making it a must-have for your power entry solutions. Upgrade your setup today for peace of mind and superior functionality.
