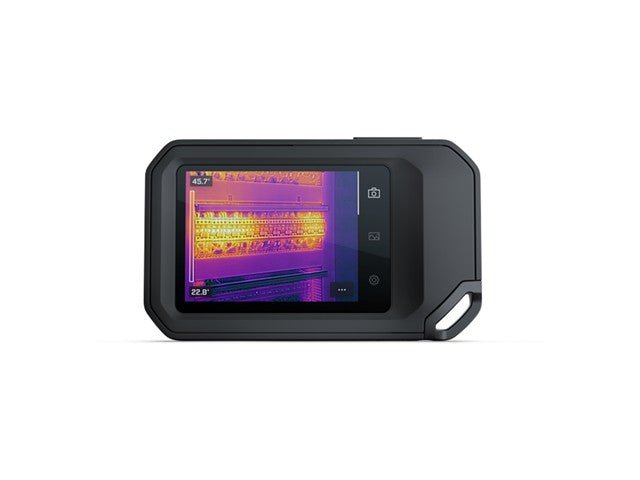

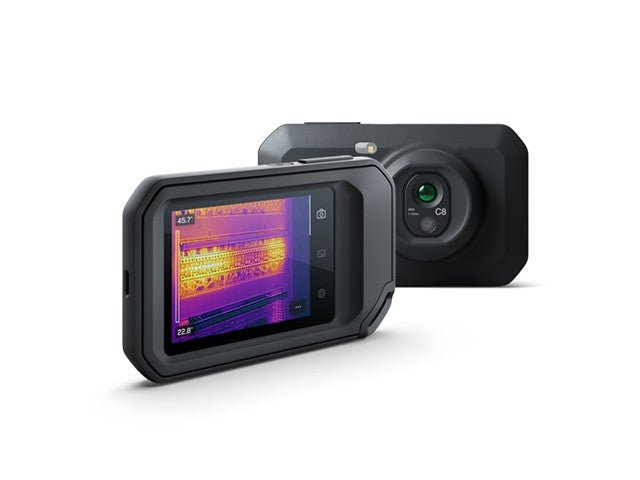

FLIR C8

Name: FLIR C8 - Communica [Part No: FLIR C8]
Brand: FLIR
SKU: FLIR C8
Price: 16995 ZAR
Availability: OutOfStock

SKU: FLIR C8

BRAND: FLIR

Sold Out
R 19,544.25_{(inc VAT)}
R 16,995.00_{(ex VAT)}

Collections: Test & Measurement

Type: Thermal Imagers

Category: Thermal Imaging Camera

Thermal Imaging Camera 5MP, Spectral Range:7.5–13μm, Detector Pitch:12μm, Screen Size:3.5", WiFi, Bluetooth, USB2.0 Type-C connector, Display Resolution:640×480 Pixels, FOV:71.5°×56° (84° Diagonal), Object Temp Range:-20°C~450°C, 138×84×34mm

5MP Thermal Imaging Camera

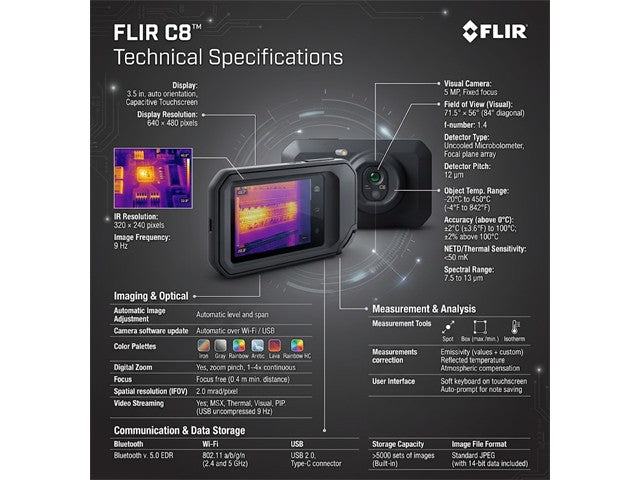

Specifications

IR Resolution	320 × 240 pixels
Thermal Sensitivity/NETD	<50 mK
Accuracy	Accuracy at ambient temp. 10°C to 35°C (50°F to 95°F) and object temp. above 0°C (32°F): • 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F) • 100°C to 450°C (212°F to 842°F): ±2%
Field of view (FOV)	35° × 27°
Digital Camera	5 MP, Fixed focus, 71.5° × 56° (84° diagonal) field of view
Image Modes	• Infrared image • Visual image • MSX • Picture in picture (IR area on visual image)
Display	3.5 in, auto orientation
Storage Media	Built-in

Imaging & Optical
Automatic Image Adjustment	• Automatic level and span
Camera software update	• Automatic over Wi-Fi • USB via computer
Color Palettes	Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Pitch	12 µm
Detector Type	Focal plane array, uncooled microbolometer
Digital Camera	5 MP, Fixed focus, 71.5° × 56° (84° diagonal) field of view
Digital Zoom	Yes, zoom pinch, 1–4× continuous
Display resolution	640 × 480 pixels
f-number	1.4
Field of view (FOV)	35° × 27°
Focus	Focus free
Image Frequency	9 Hz
Image Modes	• Infrared image • Visual image • MSX • Picture in picture (IR area on visual image)
IR Resolution	320 × 240 pixels
Manual Image Adjustment	• Manual level and span • 1-Touch level and span
Minimum Focus Distance	0.4 m (1.3 ft)
Spatial resolution (IFOV)	2.0 mrad/pixel
Spectral Range	7.5 to 13 µm
Thermal Sensitivity/NETD	<50 mK
Video Streaming	Yes; MSX, Thermal, Visual, Picture in Picture. USB Video Class colorized uncompressed with overlay 9 Hz.

Measurement & Analysis
Accuracy	Accuracy at ambient temp. 10°C to 35°C (50°F to 95°F) and object temp. above 0°C (32°F): • 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F) • 100°C to 450°C (212°F to 842°F): ±2%
Measurement Tools	• Spot • Box with max./min. • Isotherm
Measurements correction	• Emissivity; matt/semi-matt/semi-glossy + custom value • Reflected apparent temperature • Atmospheric compensation
Object Temperature Range	-20°C to 450°C (-4°F to 842°F)

User Interface
Display	3.5 in, auto orientation
Text	Image annotations: Soft keyboard on touchscreen, auto-prompt for note when image is saved
Touchscreen	Yes, capacitive

Communication & Data Storage
Bluetooth	Bluetooth v. 5.0 EDR • PAN
Image File Format	Standard JPEG, 14-bit measurement data included
Image Storage Capacity	>5000 sets of images
Storage Media	Built-in
USB	USB 2.0, Type-C connector
WiFi	802.11 a/b/g/n (2.4 and 5 GHz)
