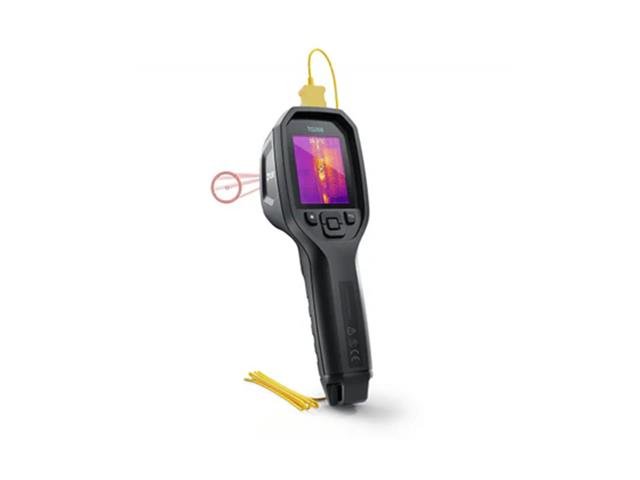

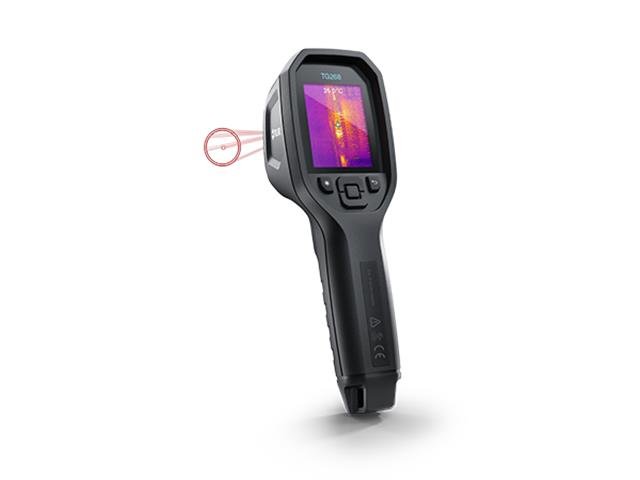

Infrared Thermal Imaging Camera 2.4” Color LCD, 320×240 Pixels, Temp Range:−25°C~ 400°C (-13°F~752°F), Distance: Spot Size Ratio:24:1, Field of View (HxV) 44°×57° , IR 160×120, Type-K Range:−30°C~390°C (-22°F~734°F), USB Type-C, Bluetooth, IP54

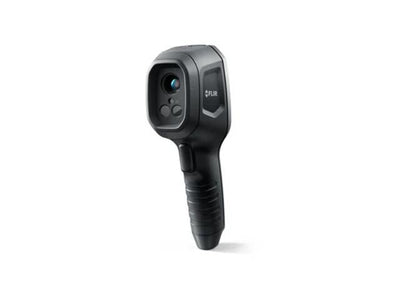

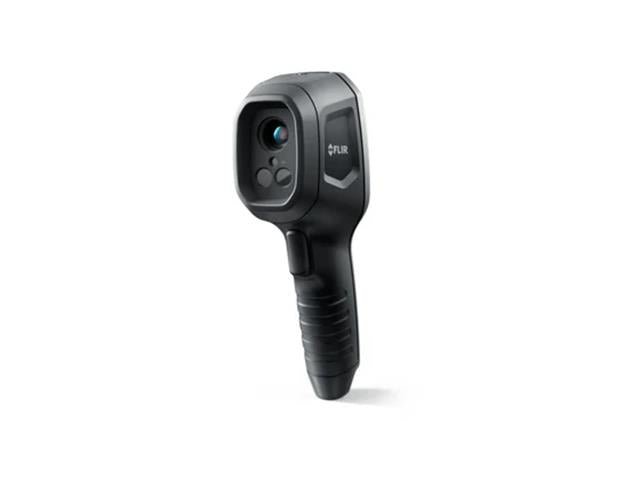

Infrared Thermal Imaging Camera
Overview

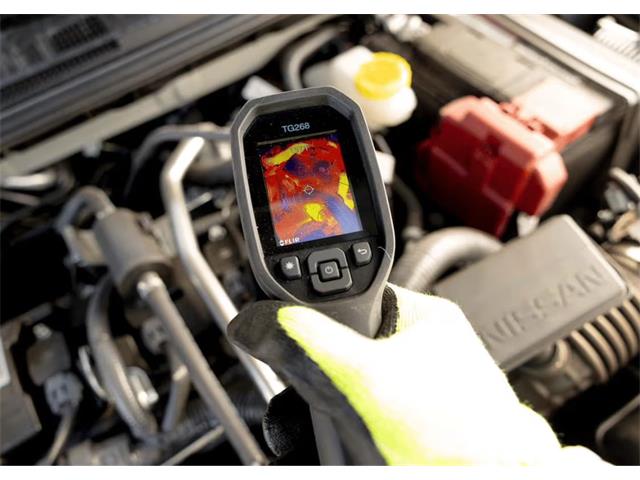

The FLIR TG268 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, automotive and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting. Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 ×120 to 320 × 240 for superior detail to help you accurately target potential faults and troubleshoot repairs. Then with the FLIR METERLiNK® app, you can quickly and efficiently capture and compare readings, analyze and share images and videos, and create reports and easily share them with your team.
Specifications
- IR Resolution
- 160 × 120
- Super Resolution 320 × 240
- Thermal Sensitivity/NETD : <70 mK
- Accuracy
- ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F)
- ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F)
- Field of view (FOV) : 57° × 44°
- Image Modes
- MSX® (Multi Spectral Dynamic Imaging)
- Visual with temperature reading
- Display : 320 × 240, 2.4 in color LCD
- Storage Media : 8 GB
- Built-in Digital Camera : Yes
- Color Palettes : Iron, Rainbow, White hot, Black hot, Arctic, Lava
- Detector Pitch : 12 µm
- Detector Type : Focal plane array (FPA), uncooled microbolometer
- Digital image enhancement : Yes
- Field of view (FOV) : 57° × 44°
- Focus : Focus free
- Gallery : Yes
- Image Frequency : 8.7 Hz
- Image Modes
- MSX® (Multi Spectral Dynamic Imaging)
- Visual with temperature reading
- IR Resolution
- 160 × 120
- Super Resolution 320 × 240
- Laser : Class 1 laser indicates the temperature measurement area; button-activated
- Minimum Focus Distance : 0.3 m (0.98 ft)
- Minimum Measurement Distance : 0.26 m (0.85 ft)
- Non-radiometric IR video recording : Yes
- Spectral Range : 7.5 - 14 µm
- Thermal Sensitivity/NETD : <70 mK
- Accuracy
- ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F)
- ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F
- Camera size (L x W x H) : 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
- Camera weight incl battery : 0.394 kg (13.9 oz)
- Center spot : Yes
- Measurement Option : Non-contact surface / contact with Type-K
- Object Temperature Range : −25°C to 400°C (−13°F to 752°F)
- Display : 320 × 240, 2.4 in color LCD
- Battery operating time : 5 hours continuous scanning, 4.5 hours with laser on
- Battery Type : Rechargeable Li ion battery
- Battery voltage : 3.7 V
- Charging system : Battery is charged inside the camera
- Charging Temperature : 0°C to 45°C (32°F to 113°F)
- Charging Time : 3 hours to 90%, 4 hours to 100%
- Certifications : CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan
- Drop test : Designed for 2 m (6.6 ft)
- EMC
- EN 61000-6-3
- EN 61000-6-2
- FCC 47 CFR Part 15 Class B
- Encapsulation : IP 54 (IEC60529)
- Humidity (Operating and Storage) : 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
- Operating Temperature Range : -10°C to 45°C (14°F to 113°F)
- Radio Spectrum
- ETSI EN 300 328
- FCC Part 15.249
- RSS-247 Issue 2
- EN 301 489-1:2011
- EN 301 489-17:2009
- Safety : CE/CB/EN61010/UL
- Shock : 25 g (IEC 60068-2-27)
- Storage Temperature Range : −30°C to 55°C (−22°F to 131°F)
- Tripod Mounting : 1/4 in.-20 on handle bottom
- Vibration : 2 g (IEC 60068-2-6)
- Warranty : FLIR 2-10 warranty
- Package Includes
- TG268
- Wrist Strap Lanyard
- Pouch
- USB Type-C cable
- Type-K Thermocouple
- Printed Documentation
