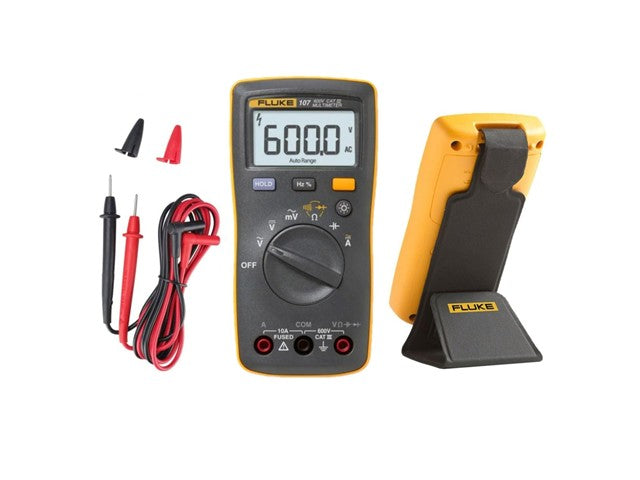

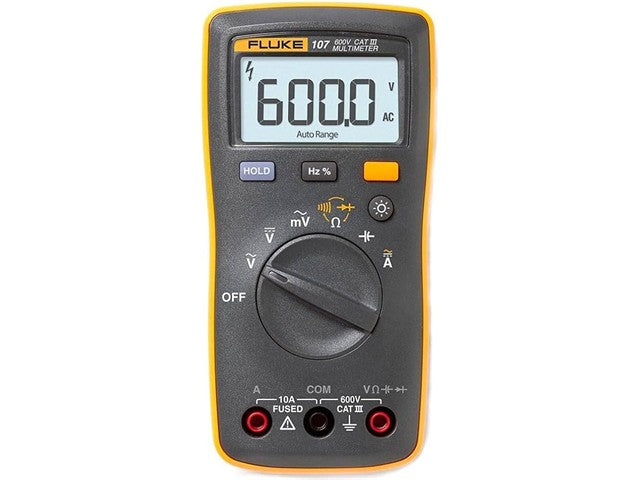

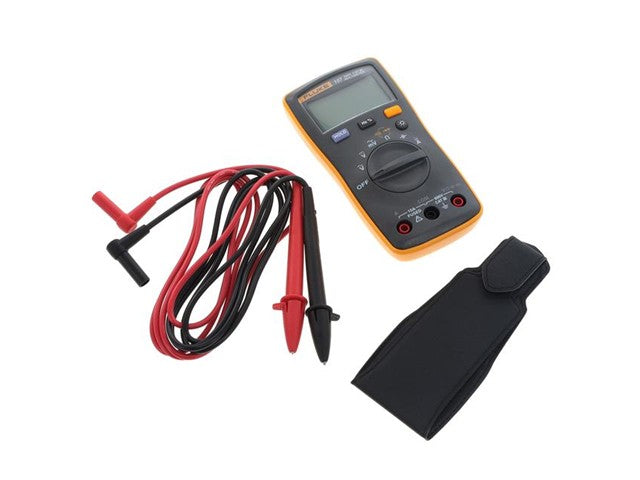

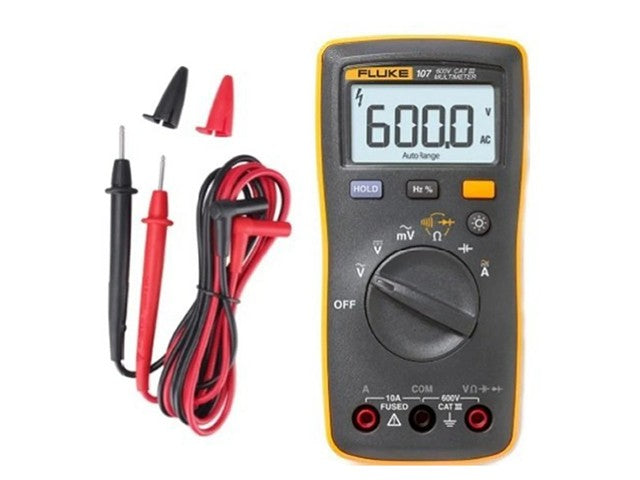

FLUKE 107

SKU: FLUKE 107

BRAND: Fluke


Pocket Size AC/DC Digital Multimeter with Backlight and Data Hold

Overview

The Fluke 107 digital multimeter is made to fit the way you work! It is designed to fit in the palm of your hand and go with you no matter where your job takes you.

Features

  • Voltage, resistance, continuity, capacitance
  • Input terminal for AC and DC current measurements to 10 A and current
  • Backlit display
  • Data hold
  • Diode test, plus frequency and duty cycle measurements

Specification

Electrical Specifications

AC Volts (40 Hz to 500Hz)
  • 6V (0.001 V) : 1.0% + 3
  • 60V (0.01 V) : 1.0% + 3
  • 600V (0.1 V) : 1.0% + 3
DC Volts
6V (0.001V) : 0.5% + 3 60V (0.01V) : 0.5% + 3 600V (0.1V) : 0.5% + 3
AC Millivolts
  • 600mV (0.1 mV) : 3.0% + 3
Diode Test2
  • 2V (0.001 V) : 10%
Resistance (Ohms)
  • 400Ω (0.1Ω) : 0.5% + 3
  • 4kΩ (0.001 kΩ) : 0.5% + 2
  • 40kΩ (0.01 kΩ) : 0.5% + 2
  • 400kΩ (0.1 kΩ) : 0.5% + 2
  • 4MΩ (0.001 MΩ) : 0.5% + 2
  • 40MΩ (0.01MΩ) : 1.5% + 3
Capacitance3
  • 50nF (0.01 nF) : 2% + 5
  • 500nF (0.1nF) : 2% + 5
  • 5μF (0.001μF) : 5% + 5
  • 50μF (0.01μF) : 5% + 5
  • 500μF (0.1μF) : 5% + 5
  • 1000μF (1μF) : 5% + 5
Frequency4 (10 Hz – 100 kHz)
  • 50Hz (0.01 Hz) : 0.1% + 3
  • 500Hz (0.1 Hz) : 0.1% + 3
  • 5kHz (0.001 kHz) : 0.1% + 3
  • 50kHz (0.01 kHz) : 0.1% + 3
  • 100kHz (0.1 kHz) : 0.1% + 3
Duty Cycle4
  • 1% to 99% (0.1%) : 1% typical 5
AC Current (40 Hz to 200 Hz)
  • 4A (0.001A) : 1.5% + 3
  • 10A (0.01A) : 1.5% + 3
DC Current
  • 4A (0.001A) : 1.5% + 3
  • 10A (0.01A) : 1.5% + 3
  • Backlight : Yes

General Specifications

  • Maximum voltage between any terminal and earth ground : 600 V
  • Display (LCD) : 6000 counts, updates 3/sec
  • Battery type : 2 AAA, NEDA 24A, IEC LR03
  • Battery life : 200 hours minimum
  • Temperature Operating : 0°C to 40°C
  • Storage Temperature : -30°C to 60°C
  • Relative humidity
  • Non-condensing when < 10°C
    • ≤ 90 % at 10 °C to 30 °C;
    • ≤ 75 % at 30 °C to 40 °C
  • Operating Humidity 40 MΩ Range
    • ≤ 80 % at 10 °C to 30 °C;
    • ≤ 70 % at 30 °C to 40 °C
  • Altitude Operating : 2000m
  • Temperature coefficient : 0.1 X (specified accuracy)/°C (< 18 °C or > 28 °C)
  • Fuse protection for current inputs : 11 A, 1000 V Fast Fuse, Fluke specified part only
  • Storage : 12 000m
  • Size : 142 mm x 69 mm x 28mm
  • Weight : 200 g
  • IP rating : IEC 60529: IP40
  • Safety : IEC 61010-1: 600 V CAT III, Pollution Degree 2
  • Electromagnetic environment : IEC 61326-1 portable
  • Electromagnetic compatibility : Applies to use the Korea only. Class A Equipment (Industrial broadcasting and communication equipment)
  • Warranty : One year
