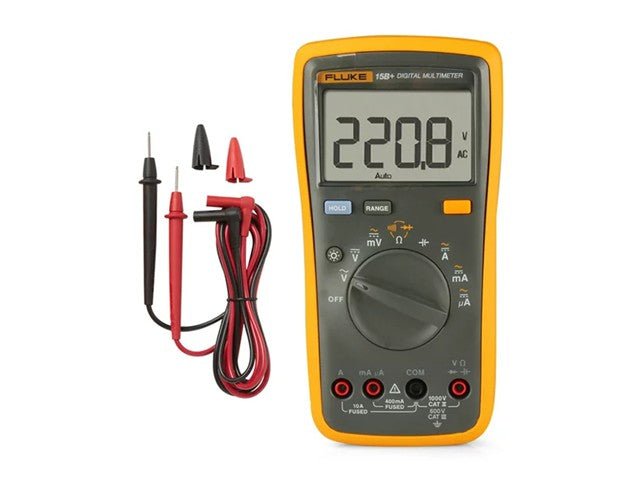

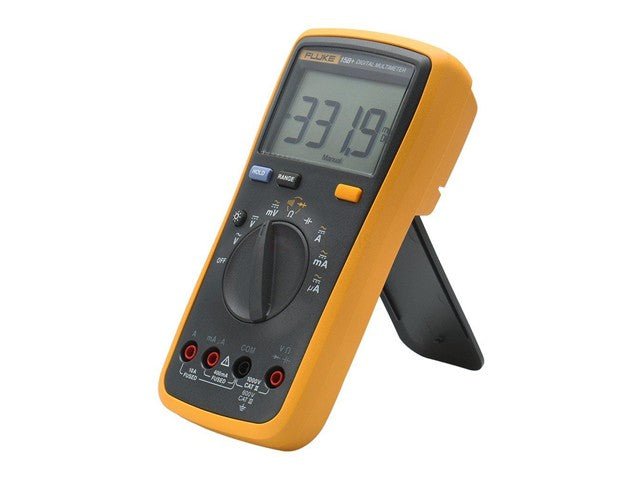

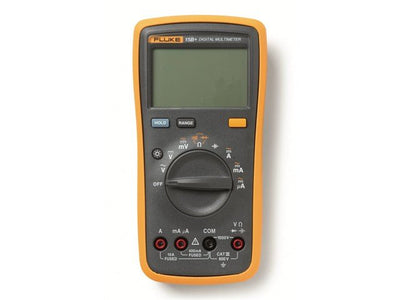

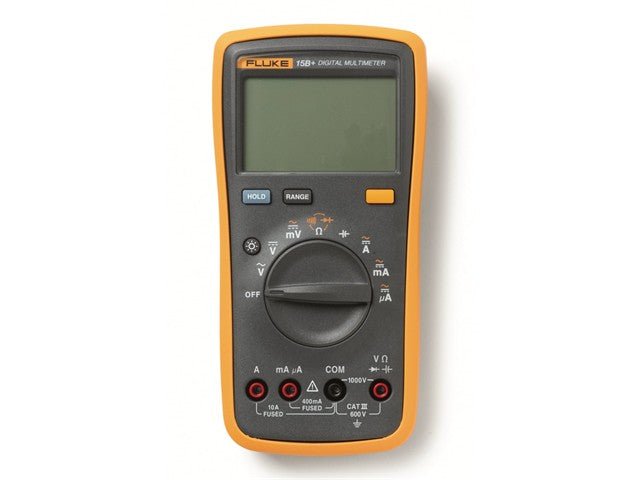

FLUKE 15B+

SKU: FLUKE 15B+

BRAND: Fluke


4000 Count Digital Multimeter with Auto and Manual Range

Digital Multimeter

Overview

If you always wanted a Fluke meter, discover the new Fluke 15B Digital Multimeters. Designed and manufactured to Fluke’s high standards of ruggedness, reliability and accuracy. The new Fluke 15B meters include:

  • Vac,Vdc,resistance,capacitance, continuity beeper, diode test,A ac,A dc and durable holster.
  • A rugged and safe design all inputs, ranges and functions are protected to 1000 V.
  • Frequency up to 100 kHz, temperature and relative mode in the Fluke 17B.
  • Test leads, thermocouple (17B), battery and localized manual

Features

  • 4,000-count Digital Display, updates 3/sec
  • Auto and Manual Range using RANGE button
  • Display Hold for user convenience
  • Diode Test and Audible Continuity Beeper
  • Holster with space for hanging attachment
  • IEC 1010-1: CAT I 1000 V, CAT II 600 V, CAT III 300 V
  • Sleep mode
  • Battery door provides easy battery access
  • 1-year warranty
  • 500-hour typical alkaline battery life

Specifications

AC Voltage
  • Range : 0.1 mV to 1000 V
  • Best Accuracy : ± (1.0 % + 3 counts)
  • AC Response : 40 Hz to 500 Hz
DC Voltage
  • Range 0.1 mV to 1000 V
  • Best Accuracy ± (0.5 % + 3 counts)
Ohms
  • Range 0.1 Ω to 40 MΩ
  • Best Accuracy ± (0.4 % + 2 counts)
AC Current
  • Range 0.1 mA to 10 A
  • Accuracy ± (1.5 % + 3 counts)
  • AC Response 40 Hz to 200 Hz
DC Current
  • Range 0.1 mA to 10 A
  • Accuracy ± (1.0 % + 3 counts)
Capacitance
  • Range 0.01 nF to 100 μF
  • Best Accuracy ± (2.0 % + 5 counts)

Downloads

Additional Information

Device Multimeter
Type Digital
