FLUKE 355

Name: FLUKE 355 - Communica [Part No: FLUKE 355]
Brand: Fluke
SKU: FLUKE 355
Price: 30990 ZAR
Availability: OutOfStock

SKU: FLUKE 355

BRAND: Fluke

Sold Out
R 35,638.50_{(inc VAT)}
R 30,990.00_{(ex VAT)}

Collections: Test & Measurement

Type: Clamp Multimeters & Accessories

Category: Digital Clamp Meter

Digital Clamp Meter True RMS 200A AC/DC, 1400A AC, Voltage:600VAC/1000VDC, Res:up To 400 kΩ, Freq:5Hz-1Khz, Jaw Size:58mm, CATIV 600V, CATIII 1000V

True Digital Clamp Meter

Overview

Versatile and rugged clamp meter for high currents

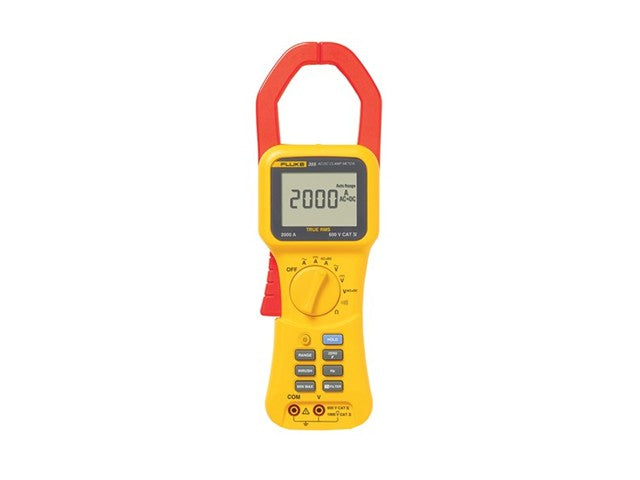

Confidently take reliable readings with the True RMS Fluke 355 digital clamp meter, the tool of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications. The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.

Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads. The 355 also measures voltage and resistance, making this an ideal clamp meter for utilities, electrical contractors and industrial service technicians.

Easy to use all-in-one tool

High voltage measurement of 1000 V AC + DC True RMS, 600 V AC, and 1000 V DC allows the user to perform multiple tests with only one tool
Resistance to 400K ohms coupled with a continuity beeper provide the convenience of a multimeter in a clamp meter
Accurately measure frequency up to 1 kHz for optimum troubleshooting
Quickly analyze readings using the MIN, MAX, and AVG functions
A large backlit display allows for easy visibility in low-lit areas
Use the display hold feature to capture readings even when the display cannot be viewed
Use the low-pass filter to smooth out noisy loads and stabilize readings

Features

Reliably handle a wide range of high-current applications with 2000 A AC + DC True RMS, 1400 A AC, and 2000 A DC
The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
CAT IV 600 V, CAT III 1000 V rating for added user protection
In-rush current measurement captures ‘power-on’ surge current with accuracy and repeatability

Specifications

Electrical Specifications
Current measurement AC 10 Hz to 100 Hz	Range	40 A / 400 A / 1400 AC rms
	Resolution	10 mA / 100 mA / 1 A
	Accuracy	40 A: 1.5% rdg + 15 digits 400 A: 1.5% rdg + 5 digits 1400 A: 1.5% rdg + 5 digits
	Trigger level for Inrush	0.50 A / 5.0 A / 5 A
	Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
	Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Crest Factor (50/60 Hz)	Range	40 A / 400 A / 1400 AC
Crest Factor (50/60 Hz)	Crest Factor¹	2 @ 33 A, 2.4 @ 27 A 2 @ 330 A, 2.4 @ 270 A 2 @ 1000 A, 2.4 @ 833 A
Current measurement AC 100.1 Hz to 1 kHz	Range	40 A / 400 A / 1400 AC rms
	Resolution	10 mA / 100 mA / 1 A
	Accuracy	40 A: 3.5% rdg + 15 digits 400 A: 3.5% rdg + 5 digits 1400 A: 3.5% rdg + 5 digits
	Trigger level for Inrush	0.50 A / 5.0 A / 5 A
	Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
	Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Current measurement DC	Range	40 A / 400 A / 2000 A
	Resolution	0.01 A / 0.1 A / 1 A
	Accuracy	40 A: 1.5% rdg + 15 digits 400 A: 1.5% rdg + 5 digits 2000 A: 1.5% rdg + 5 digits
Voltage measurement AC 10 Hz to 100 Hz (600 V range has 10% over range to 660 V)	Range	4 V / 40 V / 400 V / 600 V AC rms
	Resolution	1 mV / 10 mV / 100 mV / 1 V
	Accuracy	4 V: 1% rdg + 10 digits 40 V: 1% rdg + 5 digits 400 V: 1% rdg + 5 digits 600 V: 1% rdg + 5 digits
	Trigger level for Hz filter OFF	0.25 V / 6 V
	Trigger level for Hz filter ON	0.25 V / 6 V
Voltage measurement AC 100.1 Hz to 1 kHz (600 V range has 10% over range to 660 V)	Range	4 V / 40 V / 400 V / 600 V ac rms
	Resolution	1 mV / 10 mV / 100 mV / 1 V
	Accuracy	4 V: 3% rdg + 10 digits 40 V: 3% rdg + 5 digits 400 V: 3% rdg + 5 digits 600 V: 3% rdg + 5 digits
	Trigger level for Hz filter OFF	0.050 V / 0.25 V / 6 V / 6 V
	Trigger level for Hz filter ON	0.050 V / 0.25 V / 6 V / 6 V
Voltage measurement DC	Range	4 V / 40 V / 400 V / 1000 V
	Resolution	0.001 V / 0.01 V / 0.1 V / 1 V
	Accuracy	4 V: 1% rdg + 10 digits 40 V: 1% rdg + 5 digits 400 V: 1% rdg + 5 digits 1000 V: 1% rdg + 5 digits
Resistance measurement	Range	400 Ω / 4 kΩ / 40 kΩ / 400 kΩ
	Resolution	0.1 Ω / 1 Ω / 10 Ω / 100 Ω
	Accuracy	1.5% + 5 digits
Continuity beeper	On at ≤ 30 Ω Off at ≥ 100 Ω
Frequency measurement	Measurement range	5.0 Hz to 1 kHz
	Resolution	0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz)
	Accuracy – 5.0 Hz to 100 Hz	0.2% + 2 counts
	Accuracy – 100.1 Hz to 1 kHz	0.5% + 5 counts
	Trigger level	Refer to current and voltage tables
1. Add 2% to error spec for CF > 2
General Specifications
Batteries	Six 1.5 V AA NEDA 15 A or IEC LR6
Battery life (with typical usage, backlight off)	100 hours
Test leads	Rated to 1000 V
Weight	.814 kg (1.8 lb)
Jaw size	58 mm (2.28 in)
Dimensions (L x W x D)	300 x 98 x 52 mm (12 x 3.75 x 2 in)
Safety rating	IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III
Environmental Specifications
Operating temperature	32°F to +122°F (0°C to +50°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Operating humidity	0 to 95% (non-condensing)
Operating altitude	2000 m
Storage altitude	10,000 m
IP rating	42 (indoor use only)
Drop test requirements	1 m
EMI, RFI, EMC	FCC part 15, IEC/EN 61326-1:1997 class B IEC/EN 61326:1997 3 V/m, performance criteria B, EN61325
Temperature coefficients	Current	0.1% of reading per °C outside 22°C to 24°C
Temperature coefficients	Voltage	0.1% of reading per °C outside 22°C to 24°C

Downloads

Datasheet - FLUKE 355

Additional Information

Device

Clamp Meter

Achieve precision in high-current measurements with the FLUKE 355 Digital Clamp Meter. Designed for professionals, this rugged tool offers True RMS readings up to 2000 A, ensuring accurate voltage and resistance tests. Its large jaw capacity and user-friendly features make it ideal for electricians and industrial technicians, providing reliable performance in any environment. Upgrade your toolkit with the FLUKE 355 for unmatched reliability and efficiency.
